D/SR, D/SR-W

Roof Drain Valves

Function and Description

The PROTEGO® roof drain valves D/SR or D/SR-W have the function of an inlet cup, which collects the rainwater from the floating roof through the scissor pipes of a PROTEGO® floating roof drainage system, e.g., SE/K or SE/CK, into the sewage system.

Under normal operating conditions, the roof drain valve is open. In case of any leakage, the non-return valve prevents the stored substance from escaping to the floating roof. The inlet screen protects the roof drain valve from any dirt, leaves, or nesting animals.

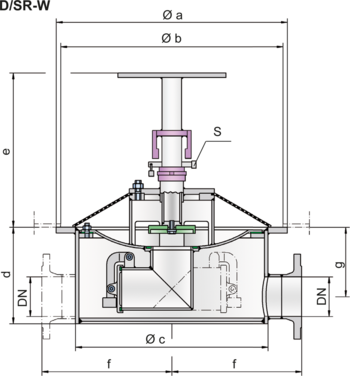

Dimensions D/SR-W

DN80 / 3'' 100 / 4''150 / 6''
a550 / 21.65600 / 23.62650 / 25.59
b490 / 19.29540 / 21.26590 / 23.23
c450 / 17.72500 / 19.69550 / 21.65
d205 / 8.07250 / 9.84320 / 12.6
e490 / 19.29490 / 19.29490 / 19.29
f285 / 11.22320 / 12.6350 / 13.78
g150 / 5.91180 / 7.09225 / 8.86
Dimensions in mm / inches

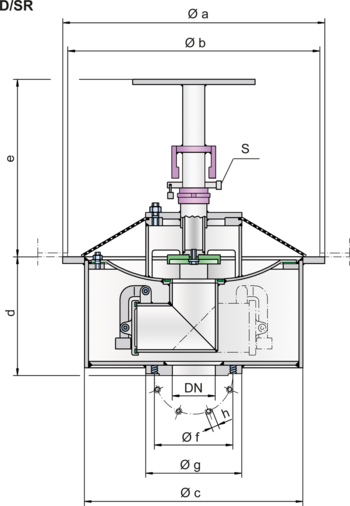

Dimensions D/SR

DN80 / 3" 100 / 4" 150 / 6"
a550 / 21.65600 / 23.62650 / 25.59
b490 / 19.29540 / 21.26590 / 23.23
c450 / 17.72500 / 19.69550 / 21.65
d240 / 9.45280 / 11.02330 / 12.99
e490 / 19.29490 / 19.29490 / 19.29
f160 / 6.3180 / 7.09240 / 9.45
g200 / 7.87220 / 8.66285 / 11.22
Dimensions in mm / inches

Material selection

DesignAB
HousingSteelStainless Steel
Non-return valveRed BrassRed Brass
Valve discSteelStainless Steel
Quick-action shut-offSteelStainless Steel
GasketPURPUR
The device must have sufficient corrosion resistance with regards to the stored media. If necessary, designs in special stainless steel quality should be selected.

Data Necessary for Specification

Maximum rainfall to be drained off (m³/h or CFH)
Material of floating roof
Connection size of the floating roof drainage system DN (mm or inches)
Design of floating roof drainage system

Selection and Design

The specified maximum rainfall is required to determine the required nominal size. Alternatively, the connection size of the roof drain valve corresponds with the existing nominal dimension of the floating roof drainage system. Roof drain valves with 2 or 3 non-return valves are available as an option.

Flange connection type

In type PROTEGO® D/SR the housing bottom is equipped with a loose flange with threaded holes according to EN 1092-1 or DIN DIN 2501, PN 16, or optionally according to any other international standard.

In the standard model of PROTEGO® D/SR-W the housing is equipped with a lateral flange connection to EN 1092-1 or DIN2501, PN 16. Optionally, the connecting flanges can be made according to any other international standard. An additional flange connection is available.

Design Types and Specifications

Two designs are available:

Roof drain valve with vertical connection

D/SR

Roof drain valve with horizontal connection

D/SR-W

As an option a special design of the roof drain valve is available with protection against unauthorized closing of the quick-action shut-off (S).

PROTEGO® roof drain valve type D/SR in combination with Floating roof drainage system PROTEGO® SE/CK

PROTEGO® roof drain valve type D/SR-W in combination with Floating roof drainage system PROTEGO® SE/K.
