PROTEGO®
Pressure and Vacuum Relief Valves
Reliable Tank Protection and Emission Reduction
PROTEGO® Pressure and Vacuum Relief Valves Soupape de surpression et dépression A pressure and vacuum relief valve is a pressure equalization valve for impermissible pressure and vacuum in a closed system. are designed to protect tanks, vessels, and process equipment from both pressure and vacuum Dépression Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. conditions.
During normal operation, storage tanks and process systems are exposed to pressure fluctuations caused by filling, emptying, thermal expansion, or operational changes. Without controlled venting, these fluctuations of pressure can lead to tank structural damage, product loss via unwanted emissions, and safety risks. PROTEGO® Conservation Vents are available as pressure relief valves, vacuum relief valves, or as combined pressure/vacuum relief valves.
Highlights of PROTEGO® Breather Valves
PROTEGO® 10% Technology and Tight Sealing
During normal operation, the valve pallet Clapet Valve pallet is the generic term for the assembly that rests on the valve seat. stays closed and seals the system. Pressure Relief Valves prevent vapor loss until shortly before the set pressure Pression de réponse Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. is reached, while Vacuum Relief Valves prevent air from entering until the defined vacuum level is reached.
Once the set pressure is exceeded, the valve begins to open. PROTEGO® Valves reach full lift Course Lift is the actual travel of the valve pallet from the main valve out of the closed position. within 10% overpressure Surpression Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. , this allows the valve to be set close to the allowable tank pressure Pression de la cuve Tank pressure is the pressure within a tank. while achieving the required flow safely without exceeding tank MAWP. This reduces unnecessary emissions compared to conventional valves that require significantly higher overpressure accumulation to fully open.

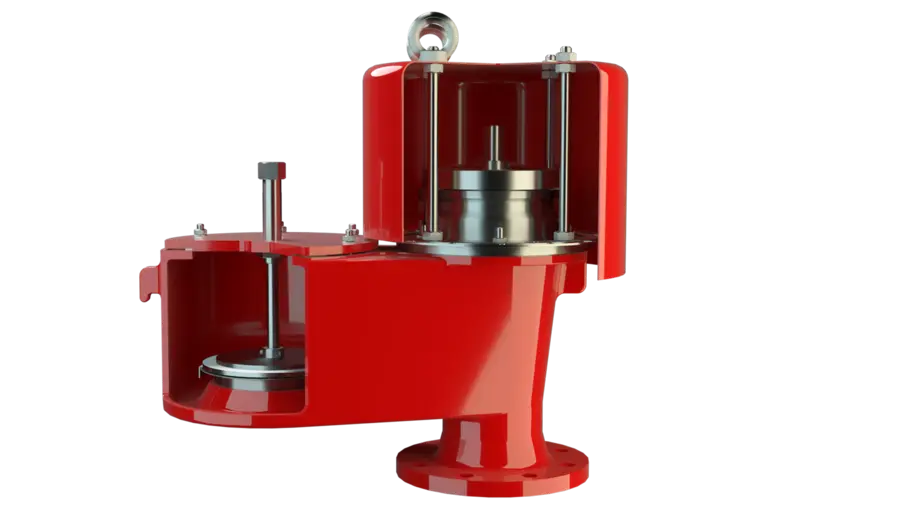

The sealing between the valve pallet and the valve seat Siège de soupape The valve seat is a component on which the valve pallet rests when the valve is closed. is provided by an FEP air cushion seal Joint A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. , a PTFE seal or, precision engineered metalic sealing technology optimized for seat tightness and in service durability. Depending on the set pressure, storage temperature or stored media, PROTEGO® can offer a comprehensive range of sealing technology solutions engineered for each individual application. The tightness of the PROTEGO® Valves is far above the normal standard (API 2000 or EN ISO 28300) and meets the stringent demands of emission control regulations.
The PROTEGO® valves demonstrated outstanding zero-emission performance and helped us achieve the environmental standards required for our site.
Application Examples for PROTEGO® Breather Valves
We provide engineered safety solutions.
Since 1954, PROTEGO® has built and provided Flame Arresters, Pressure and Vacuum Relief Valves and Tank Equipment, now with the help of more than 750 employees worldwide.
Key Features and Design Characteristics
The valve reaches full lift within 10% pressure accumulation. This allows for a valve set pressure close to tank design pressure Pression de conception Design pressure is the maximum pressure for which the system or component was designed for continuous usage. , improving pressure control efficiency and reducing product losses when compared to conventional pressure / vacuum valve designs.
PROTEGO® Valves are designed and produced with industry leading sealing technology providing seat tightness which by far exceed the requirements of international standards, helping to optimize efficiency and reduce storage tank emissions.
The PROTEGO® Valve opens later and re-seats earlier than conventional valves. This reduces the loss of product or inert gas Gaz inerte Gaz ininflammable ne permettant pas la combustion et ne réagissant pas pour former un gaz inflammable. and lowers emissions.
Large volume flows are achieved with only a small pressure difference. This supports efficient venting and can reduce the need for larger valve sizes.
The valve pallet is guided within the housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. . This protects internal components from environmental exposure and supports consistent operation.
The valve design allows for straightforward maintenance, supporting long-term operation efficiency.
The valves are suitable for use in explosion hazardous areas, supporting installation in regulated environments.
Engineering and Compliance
Correct valve selection is critical for safe and effective operation. Key selection criteria include:
Valve sizing is based on required volume flow and maximum allowable pressure. Published certified volume flow diagrams are available to support design.
Sizing must also account for:
