Função e descrição
PROTEGO® gauge hatches PS/K and PS/TK are used as lockable gauge nozzles which are only opened for gauging or sampling.
The gauge hatches PROTEGO® PS/K and PS/TK mainly consist of housing, gauging nozzle lid, and gauging nozzle bracket. As a standard, the housing has stainless steel gauging marks.

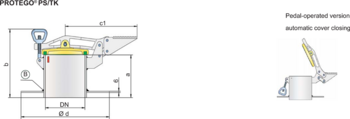

In the pedal-operated version PROTEGO® PS/TK, the gauging nozzle pedal is connected to both the housing and the bracket.
Dados necessários para a especificação
Stored product
Tank material
Tank nozzle DN (mm or inches)
Tipo de conexão flangeada
The flange connection is to EN 1092-1, Form A. Optionally, the connecting flange can be made according to any international Standard.
Versão e especificação
Depending on the intended use the following designs are available:

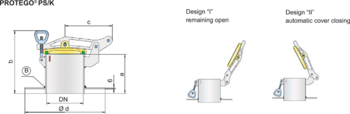

Gauge hatch with welding nozzle, design I and II | PS/K |
remaining open | „I“ |
automatic cover closing | „II“ |
Gauge hatch with welding nozzle and pedal | PF/TK |
Gauge hatches with flange are available as type PROTEGO® PF/K, PF/TK and PS/KF. A separate data sheet is available.
Gauge Hatches can for instance be used in combination with the Manual gauge devices type PROTEGO® H/P or wih the gauging and sampling device PROTEGO® VP/HK.
Gauge Hatches can be welded on tanks with floating roof.
