DR/ES-V
In-Line Detonation Flame Arrester with integrated pressure relief valve, for stable detonations and deflagrations in right angle design with shock absorber, unidirectional
- integration of in-line detonation flame arrester and pressure relief valve in one device
- excellent tightness of the valve
- can be used as a detonation-proof valve in suction lines of storage tanks
- optimal use as an overflow valve in venting and gas supply lines
- low number of FLAMEFILTER® discs due to shock absorber technology
- quick removal and installation of the complete PROTEGO® flame arrester unit and the individual FLAMEFILTER® in the casing
- provides protection against deflagration and stable detonation
- advanced design for higher operating temperatures and pressures
- cost-effective spare parts
Function and Description

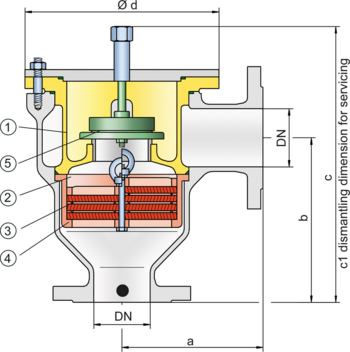

PROTEGO® DR/ES-V series uniquely combines the function of an in-line detonation flame arrester with the function of a pressure relief valve in one device. The device protects against deflagration and stable detonation. The weight-loaded pallet type valve (5) integrated in the shock absorber (1) of the in-line detonation flame arrester is designed as a pressure relief valve. The set pressure of the valve is adjusted in the factory and can range from 2 to 35 mbar (0.8 to 14 inch W.C.). After the pressure increases 40% from its set pressure, the valve completely opens to yield the maximum volumetric flow. If installed in vent headers connected to storage tanks, the valve pallet works as a check valve. This means that the product cannot flow back from the suction line into the tank. Although several functions are integrated in a single housing, the device is extremely easy to service, which is primarily due to the right-angle design.
Once a detonation enters the flame arrester, energy is absorbed from the detonation shock wave by the integrated shock absorber, before the flame is extinguished in the narrow gaps of the FLAMEFILTER® (3). The flame suppression is guaranteed, regardless of the valve pallet position.
The PROTEGO® flame arrester unit (2) consists of several FLAMEFILTER® discs and spacers firmly held in the FLAMEFILTER® casing (4). The gap size and number of FLAMEFILTER® discs depend on the operating conditions of the flowing mixture (explosion group, pressure, temperature). This device is available for explosion groups from IIA to IIB3 (NEC group D to C MESG ≥ 0.65 mm).
The standard design is approved for an operating temperature of up to +60°C / 140°F and absolute operating pressure up to 1.2 bar / 17.4 psi. Devices with special approval for higher pressures and temperatures are available upon request.
EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Design Types and Specifications
There are two different designs available:
Basic version of the detonation arrester with check valve | DR/ES- V - – |
Detonation arrester with check valve and heating jacket | DR/ES- V - H |
Set pressure
| Pressure: | +2.0 mbar | +35 mbar | |
| +0.8 inch W.C. | +14 inch W.C. |
Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
