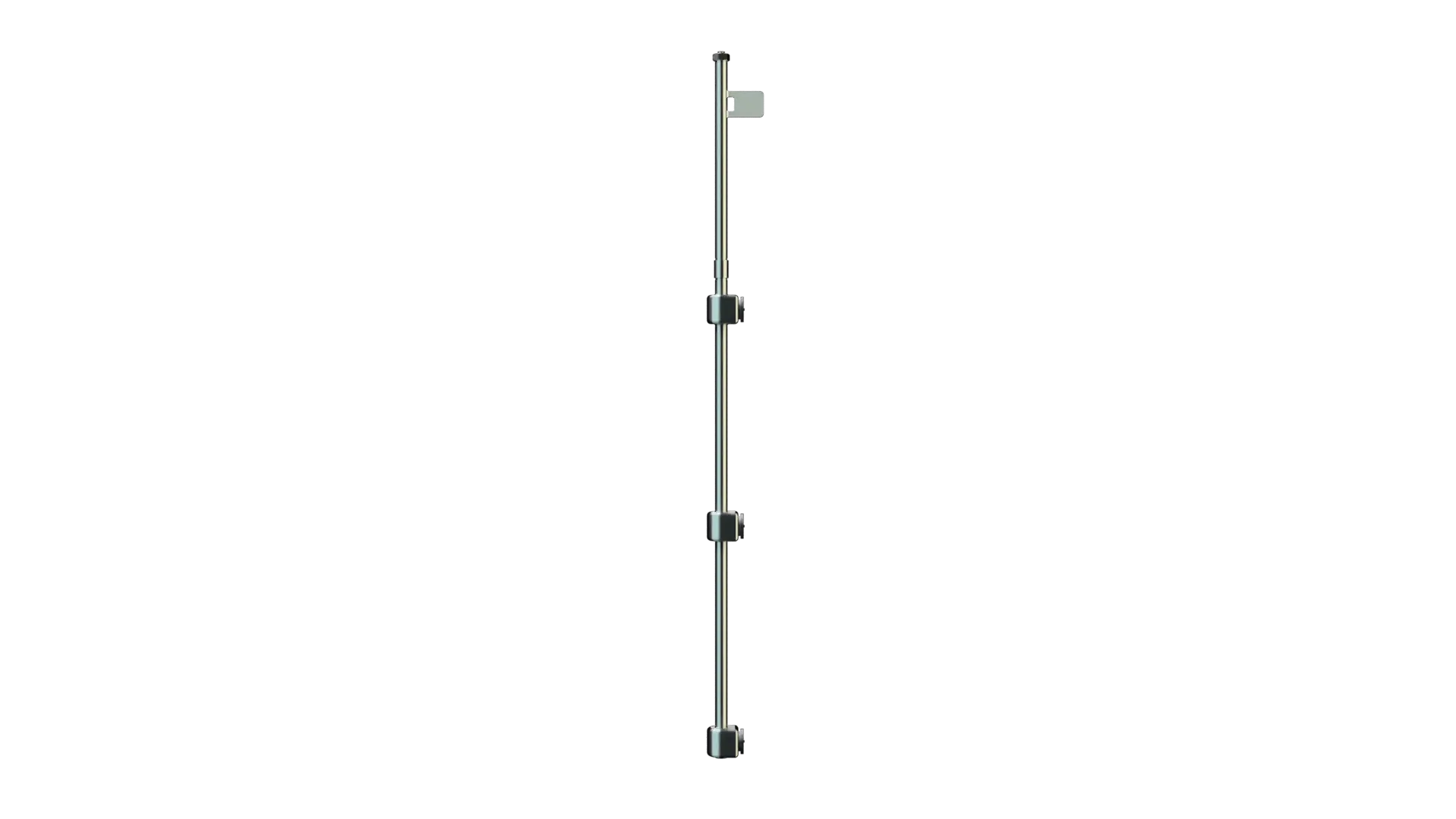

Deflagration-Proof Gauging Pipes

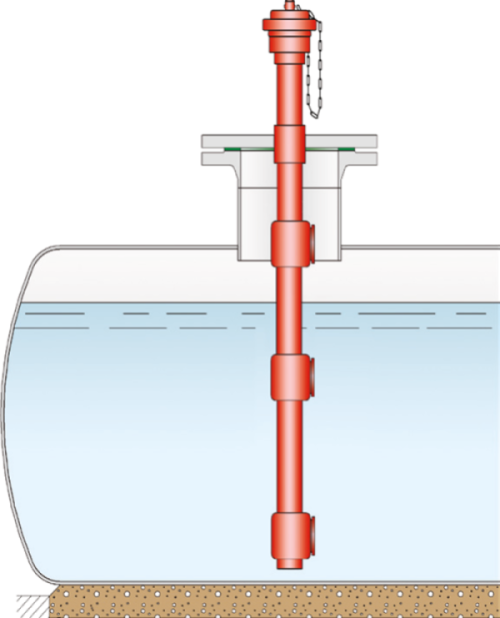

The Deflagration Deflagration Explosion propagating at subsonic velocity. -Proof Gauging Pipes With Integrated Flame Arresters Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. Type PROTEGO® PU are used for explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. -proof gauging of tank contents. The gauging pipes of type PROTEGO® PU consist of insert pipe (1) with Flame Arresters (2) – equipped with FLAMEFILTER® (3) – connecting pipe (4), bushing (5) to be welded in the nozzle cover and cap (6). The number of Flame Arresters depends on the length of the gauging pipe Gauging pipe The gauging pipe is a measuring pipe for liquids. . Please note the maximum dimension of 1.2 m / 3.94 ft for measure b and 4.13 m / 13.45 ft for measure c.
Flame Arrester Protection Against Atmospheric and Pipeline Deflagrations
In normal operation the gauging pipe is closed with the cap. It is opened only for tank content gauging. Type PROTEGO® PU ensures flame transmission protection against atmospheric deflagrations or in-line deflagrations of gas/air mixtures or product Product Includes equipment, protective systems, devices, components and combinations of these. vapour/air mixtures of substances from explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIB1 (MESG ≥ 0.85 mm, NEC group C) in all ranges of flammable concentrations up to a service temperature of +60°C / 140°F. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Dimensions

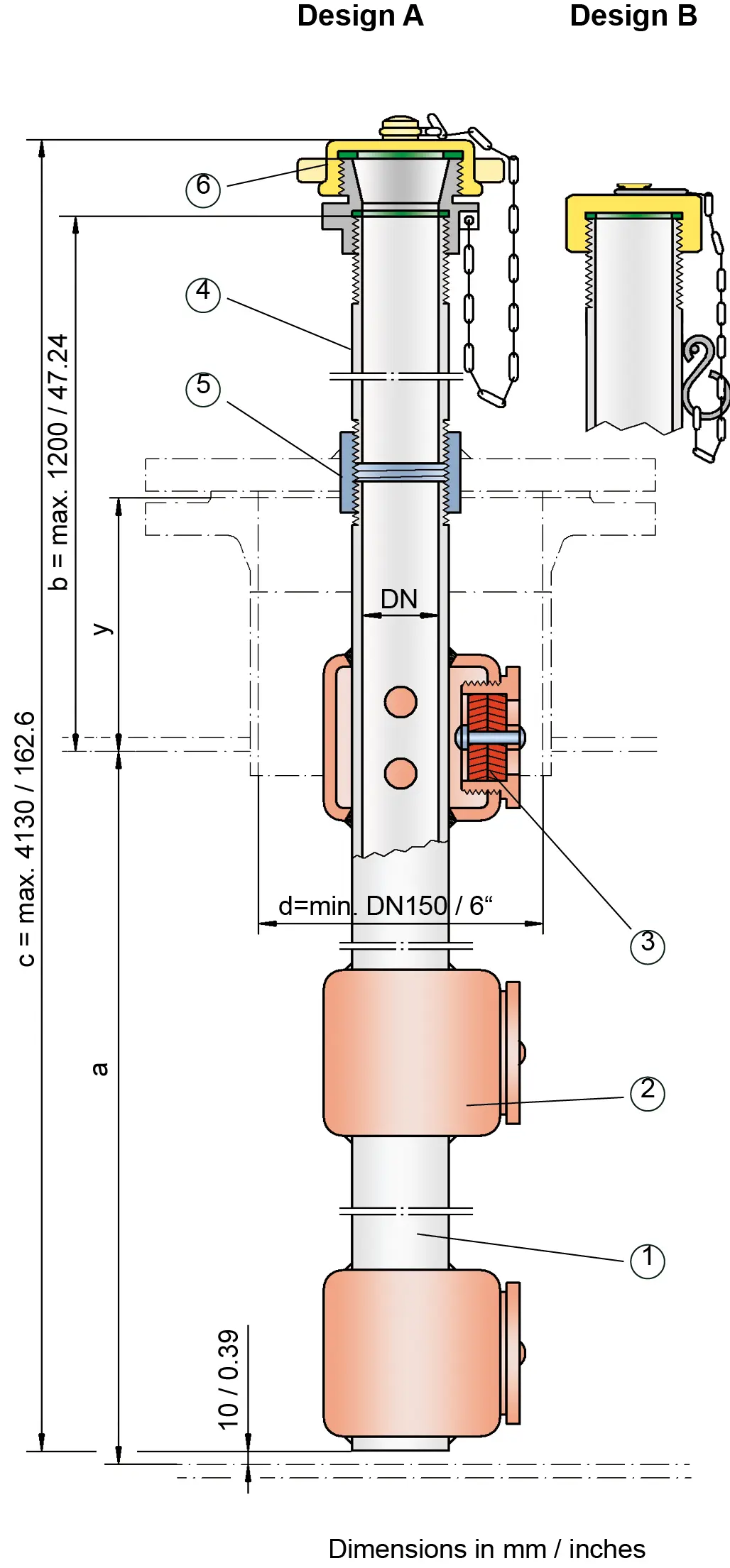

The measures a, b, y must be given with the order
| DN | minimum size d |
| 25 / 1" | 150 / 5.91 |
Dimensions in mm / inches
Material selection
| Design | A | B |
| Gauging pipe | Steel | Stainless Steel |
| Weld-in bushing | Steel | Stainless Steel |
| Cap | Brass | Stainless Steel |
| FLAMENFILTER® cage | Steel | Stainless Steel |
| FLAMENFILTER® | Stainless Steel | Stainless Steel |
In design A the connecting pipe is equipped with reducing piece and blind cap - each with integrated sealing and chain. In design B the connecting pipe is closed with a hexagon cap connected to the retainer ring via chain and wire hoop.
Explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| > ≥ 0,85 mm | IIB1 | C |
Special approvals upon request
Data Necessary for Specification
Storage productTank Diameter (m or ft)
Tank nozzle height (m or ft)
Length a (m or ft)
Length b (m or ft), max 1.2 m / 3.94 ft
Please note the Maximum length of 4.13 m / 13.45 ft for measure c
Gauging pipe Diameter DN (mm or inches)
Selection and Design
Select the required nominal sizes based on the gauging Equipment Equipment Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. size or nominal sizes of the connecting nozzle. Specify measures a, b and y for the Definition of the quantity of integrated flame arretsres.The gauging pipes of type PROTEGO® PU mainly serve for tank gauging in horizontal tanks using fuel dip stick or manual gauging device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. e.g. of type PROTEGO® H/P.
