LH/AD-IIB1-X0

Deflagration Flame Arrester, End-of-Line

Features

Comprehensive Weather Protection
Weather hood with protection screen shields the PROTEGO® flame arrester from weather and nesting animals.
Sizes
Available for DN 50/2"– bis DN 500/20"– Pipes
Application Range
for Elevated Operating Temperatures
Spare Parts
Cost-Effective Spare Parts
Low Costs
Low Operating and Lifecycle Costs
Saftey
Provides Protection Against Atmospheric Deflagrations, Short-Time Burning
Easy Maintenance
Without Disassembling of the FLAMEFILTER®

Function and Description

Main Component – PROTEGO® Flame Arrester Unit

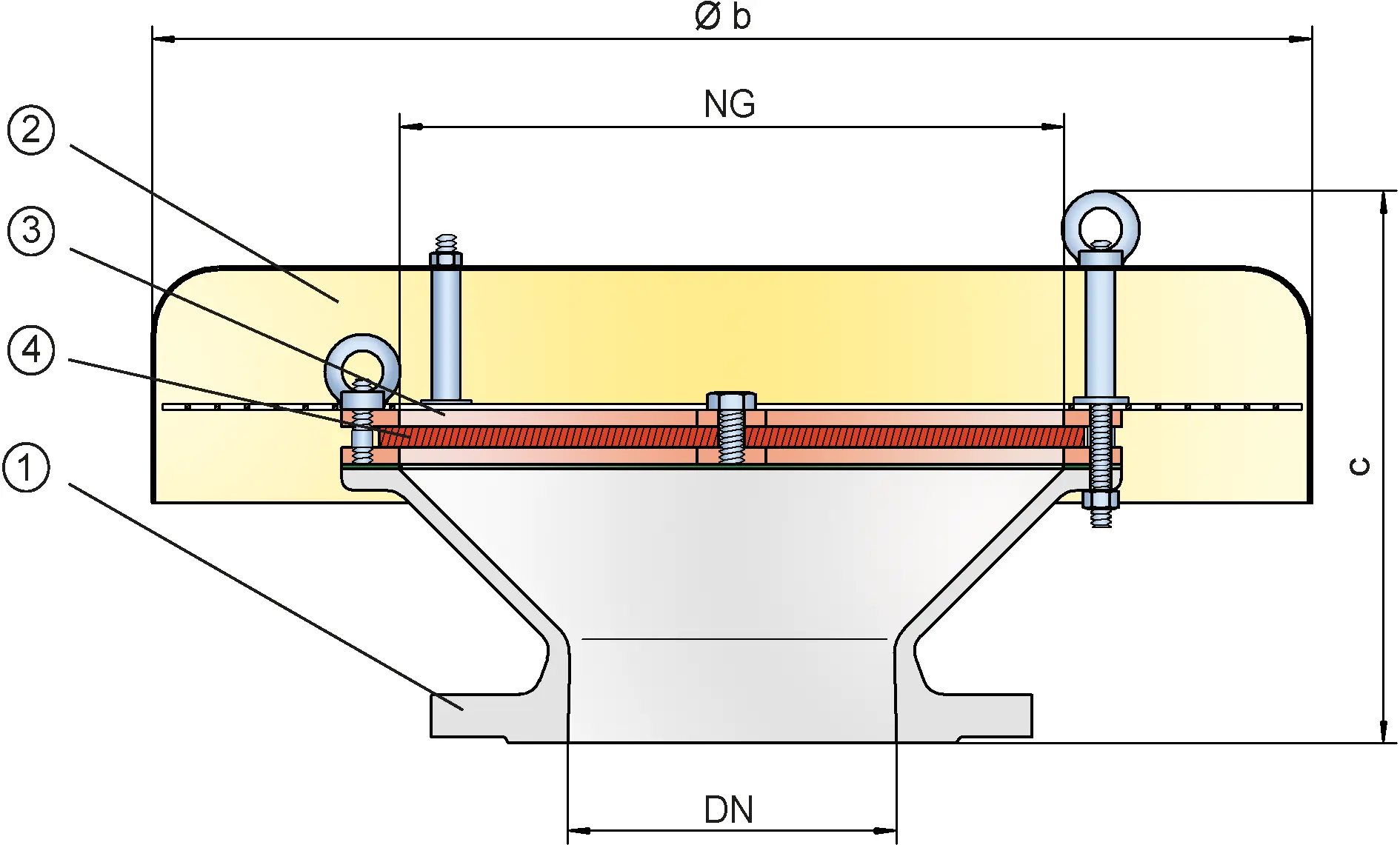

The PROTEGO® LH/AD consists of the housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood Weather hood A weather hood is a cover to protect the internal components of a device from environmental influences. (2), and the PROTEGO® Flame Arrester Unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (3). The device is equipped with a metal weather hood. A protection screen is installed between the weather hood and the housing to keep out animals and foreign bodies. The FLAMEFILTER® (4) gap size depends on the device’s intended use. Specifying the operating conditions, such as the temperature, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group and the composition of the fluid, enables PROTEGO® to select the best End-of-Line Deflagration Flame Arrester for your application.

For Explosion Group IIB1

The PROTEGO® LH/AD-IIB1-X0 end-of-line deflagration flame arrester End-of-line deflagration flame arrester A deflagration flame arrester is designed to prevent the transmission of a deflagration. is suitable for gas/air mixtures for explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIB1 (MESG ≥ 0,85mm). The standard design can be used with an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +100°C / 212°F. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

Get in Touch

Any questions? Contact our engineers.

Product Data

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DNNGbc
50 / 2" 100 / 3.94 200 / 7.87 175 / 6.89 185 / 7.28
80 / 3" 150 / 5.91 240 / 9.45 180 / 7.09 195 / 7.68
100 / 4" 200 / 7.87 295 / 11.61 220 / 8.66 235 / 9.25
150 / 6" 300 / 11.81 550 / 21.65 260 / 10.24 270 / 10.63
200 / 8" 300 / 11.81 550 / 21.65 260 / 10.24 270 / 10.63
250 / 10" 400 / 15.75 600 / 23.62 355 / 13.98 365 / 14.37
300 / 12" 400 / 15.75 600 / 23.62 340 / 13.39 350 / 13.78
350 / 14" 600 / 23.62 800 / 31.50 390 / 15.35 400 / 15.75
400 / 16" 600 / 23.62 800 / 31.50 380 / 14.96 390 / 15.35
500 / 20" 700 / 27.56 1000 / 39.37 400 / 15.75 410 / 16.14
600 / 24" 800 / 31.50 1200 / 47.24 475 / 18.70 485 / 19.09
700 / 28" 1000 / 39.37 1400 / 55.12 505 / 19.88 515 / 20.28
800 / 32" 1200 / 47.24 1600 / 62.99 550 / 21.65 560 / 22.05

Dimensions in mm / inches

Material selection for housing

Design AB
HousingSteelStainless Steel
Weather HoodStainless SteelStainless Steel
Protection screenStainless SteelStainless Steel
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. A, BB

Special materials upon request

Material combinations of flame arrester unit

Design AB
FLAMEFILTER® cageSteelStainless Steel
FLAMEFILTER®Stainless SteelStainless Steel

Special materials upon request

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,85 mmIIB1–

Special approvals upon request

Specification of max. operating temperature

≤ 100°C / 212°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Design Types and Specifications

Following designs are available:

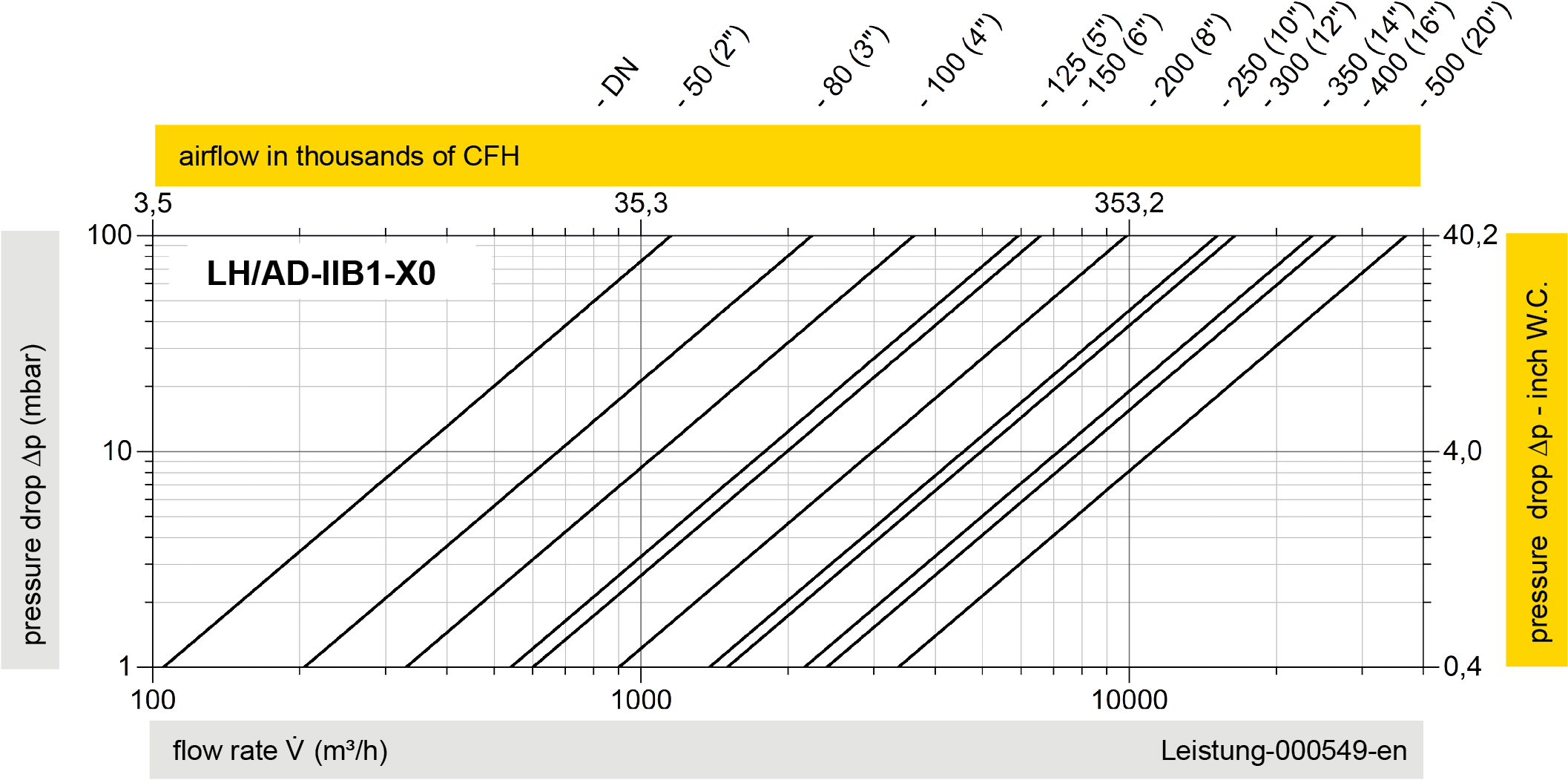

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
