DZ/EA-F

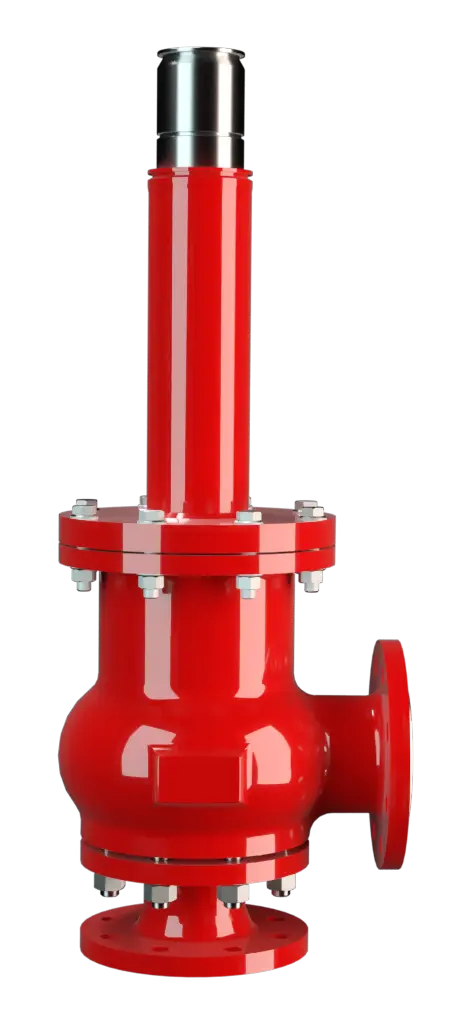

Pressure or Vacuum Relief Valve, In-Line With ETFE Lining
Features
Function and Description
Pressure or Vacuum Relief Valve for High System Pressures
The lined PROTEGO® In-Line Valve DZ/EA-F is a state-of-the-art Pressure or Vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. Relief Valve in a right angle design for higher set pressures. The lining Lining Protective plastic lining with a defined minimum/maximum thickness to protect against aggressive mixtures (e.g., acid). makes this model a perfect solution for corrosive, polymerizing, or sticky substances. All inner parts are manufactured from PTFE or other highly corrosion resistant materials. Typically, the valve is installed in the in-breathing or out-breathing lines of tanks, vessels, and process equipment Equipment Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. to protect against unallowable overpressure Overpressure Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. or underpressure. The valve prevents emission losses almost up to the set pressure Set pressure Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. and prevents unacceptable product Product Includes equipment, protective systems, devices, components and combinations of these. entry. This springloaded model allows higher set pressures than the DZ/EA.
Full Lift Technology
The device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift Lift Lift is the actual travel of the valve pallet from the main valve out of the closed position. . Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure Pressure (gauge pressure) Pressure for which the value is equal to the algebraic difference between the absolute pressure and the atmospheric pressure. valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum ( MAWP Maximum allowable working pressure (MAWP) Maximum gauge pressure permissible at the top of a completed vessel in its normal operating position at the designated coincident temperature specified for that pressure. or MAWV) of the tank and still safely vent the required mass flow.
Advanced Manufacturing Technology
Due to our highly developed manufacturing technology, the tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to set pressure with a tightness that is far above the conventional standard. This feature is ensured by the use of Hastelloy valve seats and with individually lapped valve pallets (1). After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. . The optimized fluid dynamic design of the valve body and valve pallet Valve pallet Valve pallet is the generic term for the assembly that rests on the valve seat. is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensions
To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following page
| DN | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" |
| a | 168 / 6.61 | 180 / 7.09 | 200 / 7.87 | 228 / 8.98 |
| b | 167 / 6.57 | 177 / 6.97 | 200 / 7.87 | 232 / 19.13 |
| c | 615 / 24.21 | 785 / 30.91 | 915 / 36.02 | 1160 / 45.67 |
| d | 200 / 7.87 | 240 / 9.45 | 280 / 11.02 | 335 / 13.19 |
Dimensions in mm / inches
Material for housing
| Design | B |
| Housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. | Steel |
| Lining | ETFE |
| Cover | Steel |
| Valve seat Valve seat The valve seat is a component on which the valve pallet rests when the valve is closed. | Hastelloy |
| Guiding disc | PTFE |
| Valve pallet | A |
Semi-conductive material and special material (e.g. PFA) upon request
Special materials upon request
Material selection for valve pallet
| Design | A |
| Pressure range [mbar] [inch W.C.] | ±60 up to ±500 ±24 up to ±200 |
| Valve pallet | Hastelloy |
| Spindle / Guiding | Hastelloy |
| Sealing | Metal to Metal |
Special materials upon request
Devices with higher set pressure or vacuum are available upon request, for lower set pressure or vacuum refer to type DZ/EA
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other connections upon request
Design Types and Specifications
The vent pallet is spring Spring A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. loaded. Lower set pressures for pressure and vacuum are achieved by using the type DZ/EA.Additional special devices available upon request
Within piping systems the influence of backpressure has to be considered in deciding the set pressure and opening characteristics. For special design solutions (e.g. partial load operation) the valve can be supplied with standard valve pallets (with proportional opening function).
Settings
| Pressure or vacuum settings: | ±60 mbar | ±500 mbar |
| ±24 inch W.C. | ±200 innch W.C. |
For lower set pressure or vacuum refer to type DZ/EA

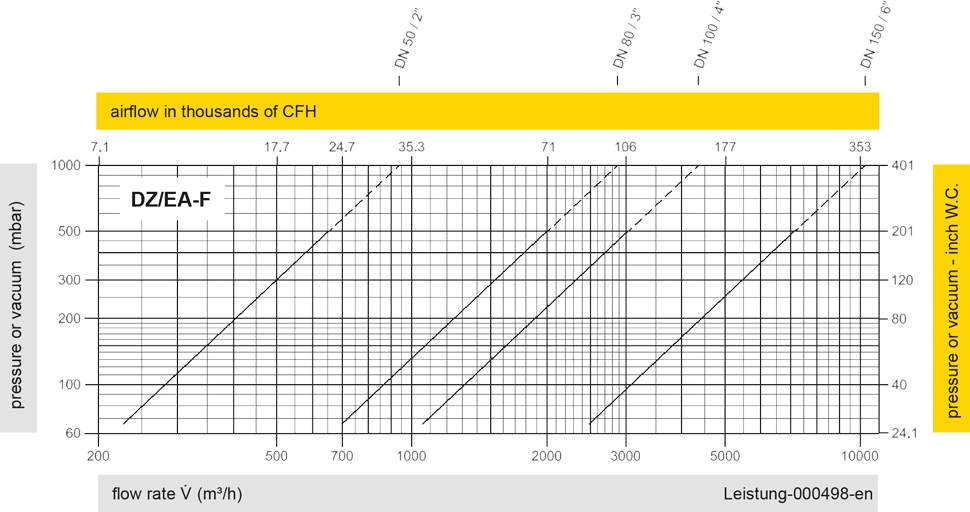

Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
