DAZ-S

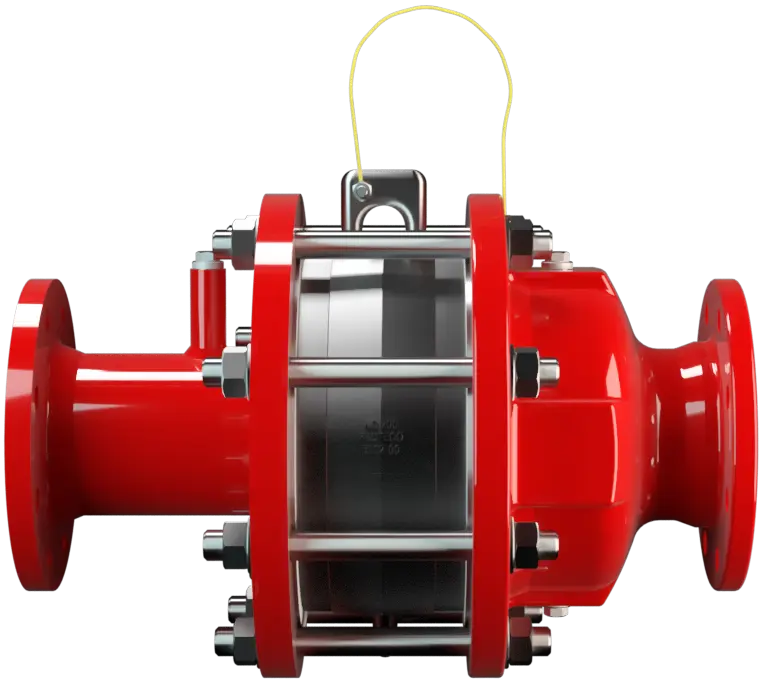

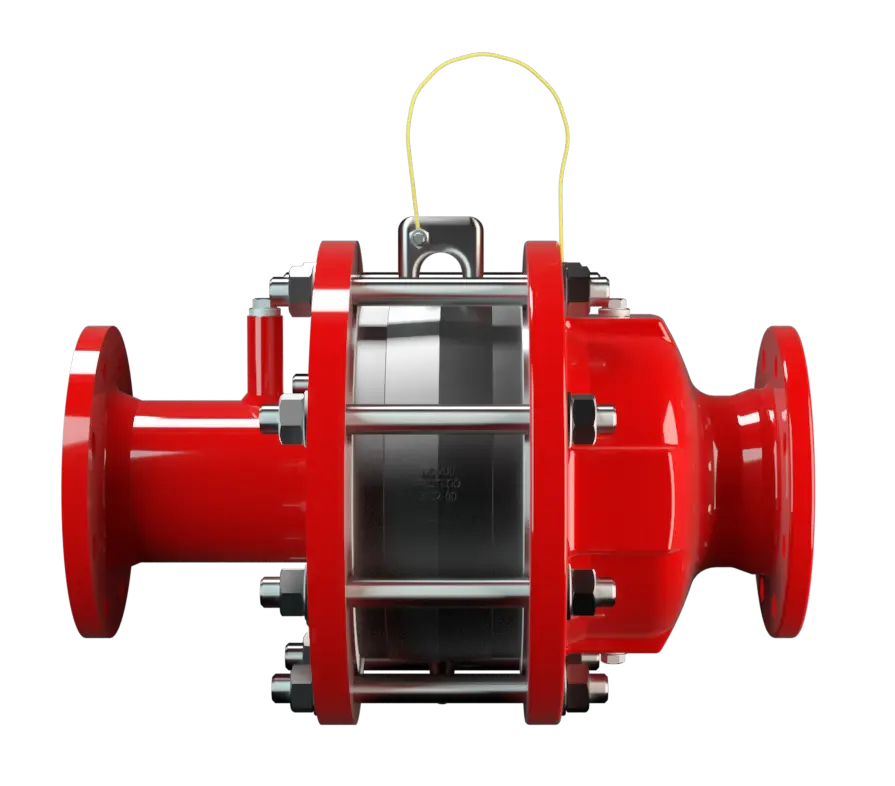

In-Line Detonation Flame Arrester for stable detonations and deflagrations in a straight through design, uni-directional
Features
Function and Description
In-Line Detonation Flame Arresters with Shock Wave Guide Tube Effect
The In-Line Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave. Flame Arresters Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. Type PROTEGO® DA-SB are the newest generation of Flame Arresters. Based on flow and explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. dynamic calculations as well as decades of field tests, a product Product Includes equipment, protective systems, devices, components and combinations of these. line was developed that offers minimum pressure Pressure (gauge pressure) Pressure for which the value is equal to the algebraic difference between the absolute pressure and the atmospheric pressure. losses with maximum safety. The Flame Arrester uses the Shock Wave Guide Tube Effect (SWGTE) to separate the flame front and shock wave. The result is an in-line detonation arrester Detonation flame arrester Flame arrester designed to prevent the transmission of a detonation. without a classic shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. , which minimizes the use of FLAMEFILTER® discs.
Main Component – PROTEGO® Flame Arrester Unit
The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable detonations. The arrester essentially consists of two housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. parts with an integrated shock tube (1) and the PROTEGO® Flame Arrester Unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2) in the center. The PROTEGO® Flame Arrester Unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® cage The FLAMEFILTER® cage is a housing for a FLAMEFILTER® set. . The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s intended use.
Many Individual Certifications
By specifying the operating conditions, such as the temperature, pressure, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group, and the composition of the fluid, the optimum detonation arrester can be selected from a series of approved devices. The PROTEGO® DA-SB Flame Arresters are available for all explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. groups. The standard design can be used with an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. up to bar / 15.9 psi. Numerous devices with special approval for higher pressures (see table 3) and higher temperatures are available upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

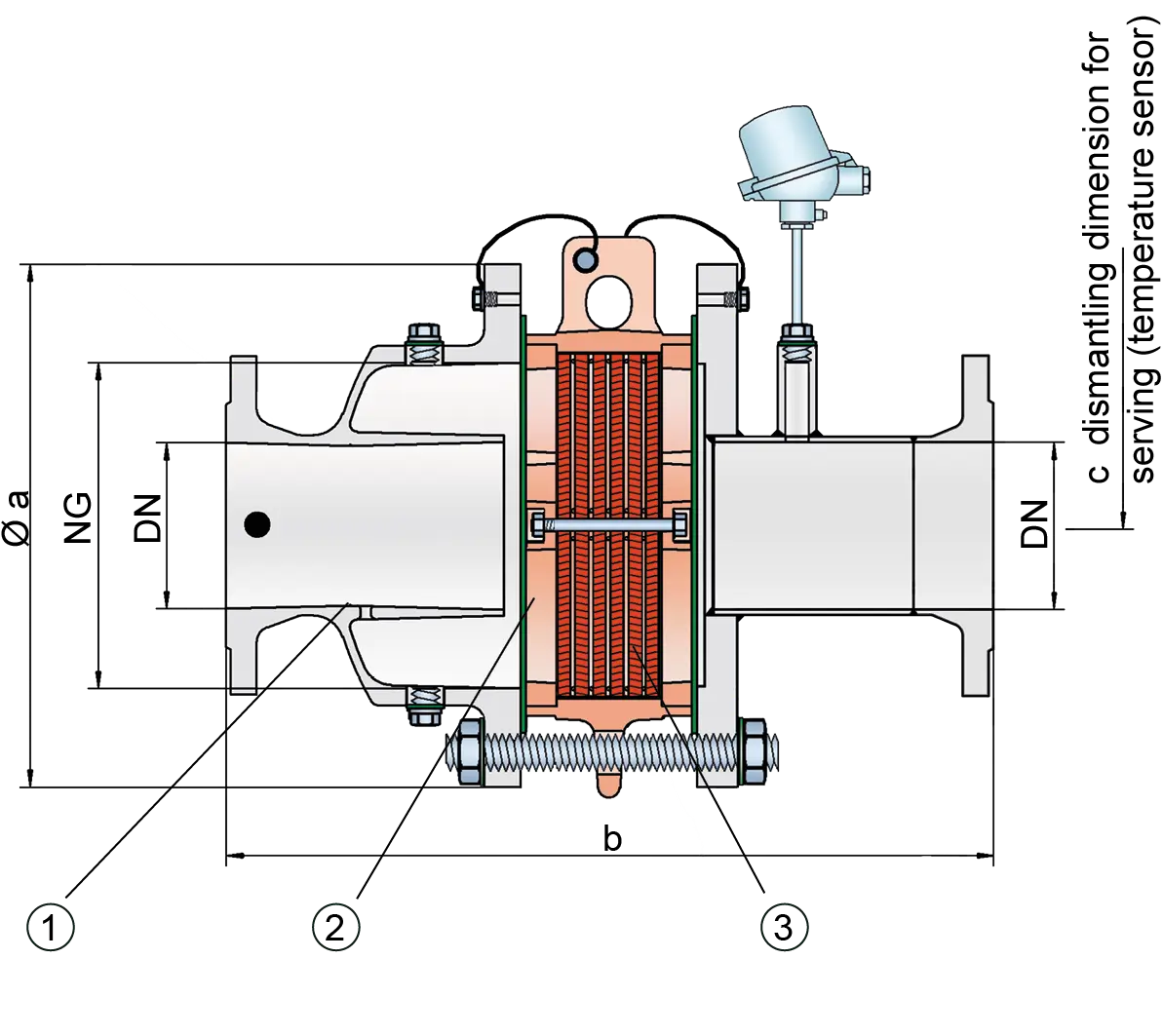

Dimensions
To select nominal width/
nominal size
Nominal size
The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters.
(NG/DN) - combination, please use the flow capacity charts on the following pages
Additional nominal width/nominal size (NG/DN) - combinations for improved flow capacity upon request
| NG | 200 / 8" | 300 / 12" | |
| DN | ≤100 / 4" | ≤150 / 6" | |
| a | 340 / 13.39 | 445 / 17.52 | |
| b | IIC-P1,2-X2 | - | 640 / 25.20 |
| IIC-P1,2-X3 | 500 / 19.69 | - | |
| IIC-P1,3 | - | 640 / 25.20 | |
| c | 415 / 16.34 | 570 / 22.44 |
Dimensions in mm / inches
Material selection for housing
| Design | A | B |
| Housing | Steel | Stainless Steel |
| Heating jacket (DAZ-S-(T)-H-...) | Steel | Stainless Steel |
| Gasket | PTFE | PTFE |
| Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. | A, B | B |
The housing is also available in carbon steel with an ECTFE coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. .
Special materials upon request
Material combinations of flame arrester unit
| Design | A | B |
| FLAMEFILTER® cage | Steel | Stainless Steel |
| FLAMEFILTER®* | Stainless Steel | Stainless Steel |
| Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® set. | Stainless Steel | Stainless Steel |
*Special materials upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| < 0,50 mm | IIC | B |
Special approvals upon request
Selection of max. operating pressure
| Marking | NG | 200 / 8" | 300 / 12" |
| DN | ≤100 / 4"' | ≤150 / 6" | |
| IIC-P1,2-X3 | Pmax | - | 1,2 / 17.4 |
| IIC-P1,2-X2 | Pmax | 1,2 / 17.4 | - |
| IIC-P1,3 | Pmax | - | 1,3 / 18.9 |
Pmax = maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request
in-between size up to Pmax upon request
Specification of max. operating temperature
| ≤ 60°C / 140°F | ≤ 180°C / 356°F | ≤ 200°C / 392°F | Tmaximum allowable operating temperature in °C |
| - | X2 | X3 | Designation |
Higher operating temperatures upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other connections upon request
Design Types and Specifications
There are three different designs available:Additional special arresters upon request
*Resistance thermometer (Ex i II 1/2 G Ex ia IIC T1…T6 Ga/Gb)

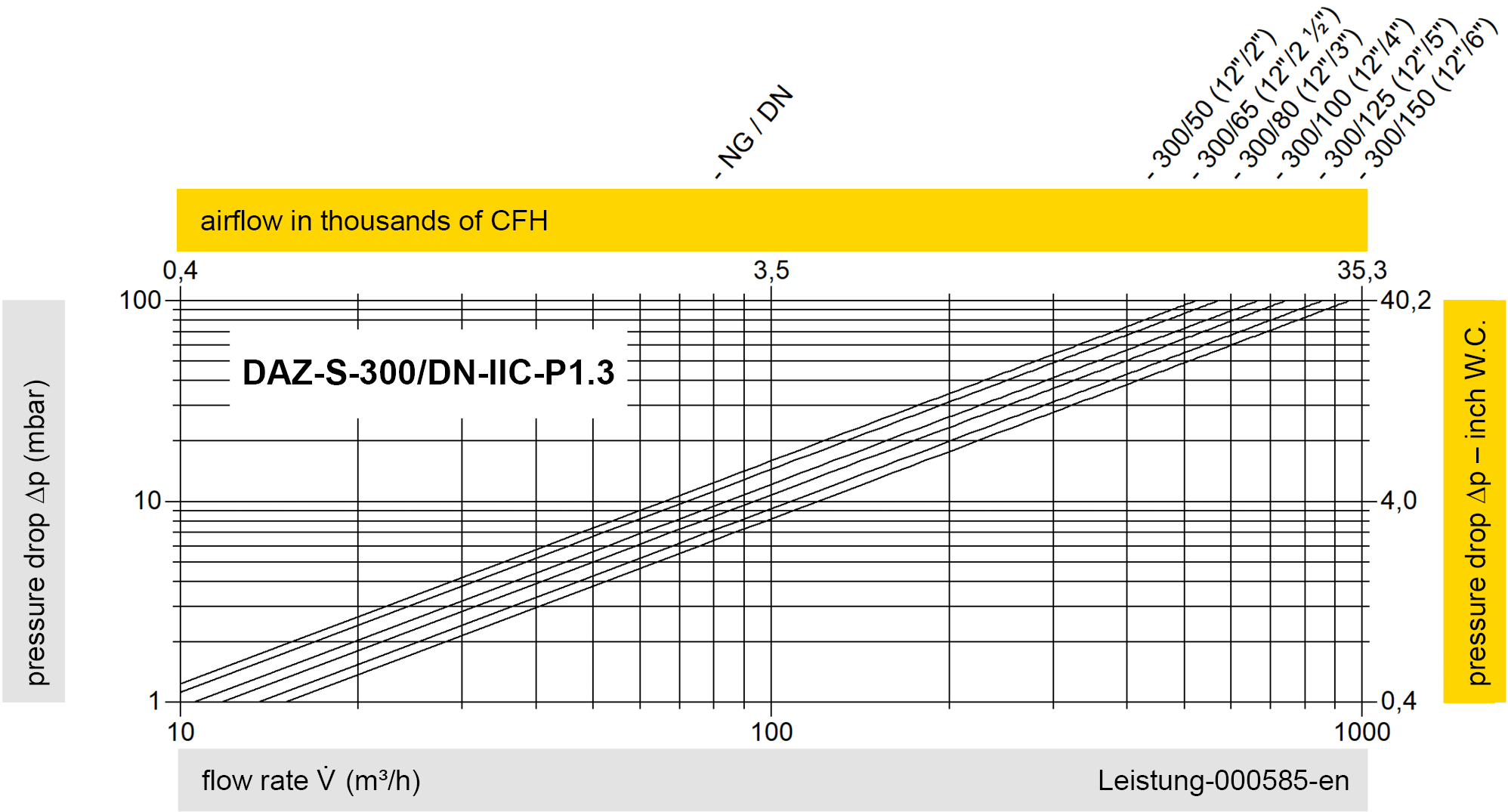

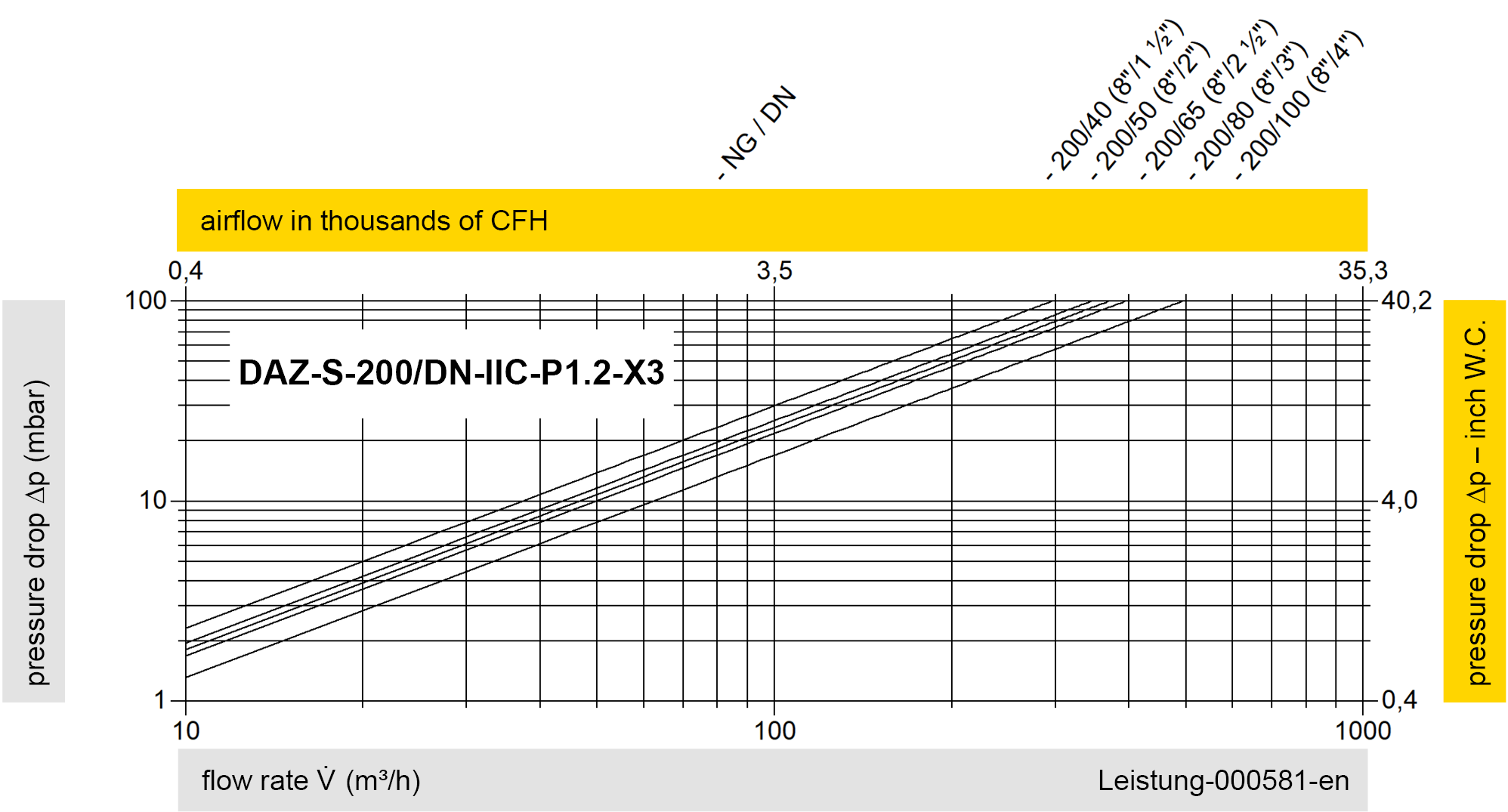

Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
