DA-SB-PTFE
In-Line Detonation Flame Arrester for stable detonations and deflagrations in a straight through design with shock absorber, bidirectional
Features
Function and Description
High-Tech Coating of the Housing
The In-Line Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave. Flame Arresters Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. Type PROTEGO® DA-SB-PTFE are the latest generation of Flame Arresters and are distinguished by its unique resistance to adhesive and corrosive media. The use of fluoroplastics as a high-tech housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. and as solid material for the Flame Arrester element is unique throughout the world. The speed of incoming detonations is highly reduced by the effective shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. (1) and result in an equal pressure Pressure (gauge pressure) Pressure for which the value is equal to the algebraic difference between the absolute pressure and the atmospheric pressure. distribution across the FLAMEFILTER® surface. This improves the flame extinction in the narrow gaps of the original PTFEFLAMEFILTER® (3).
Main Component – PROTEGO® Flame Arrester Unit
The devices are symmetrical and offer bidirectional flame arresting for deflagrations and stable detonations. The arrester essentially consists of two coated housing parts (4), two coated shock absorbers and the PROTEGO® Flame Arrester Unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2) in the center. The PROTEGO® Flame Arrester Unit is modular and consists of several FLAMEFILTER® discs and spacers firmly held in a FLAMEFILTER® cage FLAMEFILTER® cage The FLAMEFILTER® cage is a housing for a FLAMEFILTER® set. . The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s conditions of use.
For Explosion Group IIA
The Detonation Arrester PROTEGO® DA-SB-PTFE can be used for explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIA (NFPA group D). The standard design is approved at an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. up to +60°C / 140°F. The maximum allowable operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. depends on nominal diameter (DN) and nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (NG) and amounts to a maximum of 2.4 bar / 34.8 psi absolute (for DN50 / 2” see table 3). EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Dimensions
To select nominal width/nominal size (NG/DN) - combination, please use the flow capacity chart on the following pages
| NG | 150 / 6" | 150 / 6" | 200 / 8" | 300 / 12" |
| DN | 50 / 2" | 80 / 3" | 80 / 3" | 100 / 4" |
| a | 287 / 11.30 | 287 / 11.30 | 342 / 13.46 | 447 / 17.60 |
| b | 407 / 15.75 | 407 / 15.75 | 497 / 19.57 | 645 / 25.39 |
| c | 400 / 15.75 | 400 / 15.75 | 530 / 20.87 | 530 / 20.87 |
Dimensions in mm / inches
Material for housing
| Design | A |
| Housing | Steel with an ECTFE coating |
| Shock absorber | Steel with an ECTFE coating |
| Gasket | PTFE |
| Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. | A, B, C |
Special materials upon request
Material combinations of flame arrester unit
| Design | A | B | C |
| FLAMEFILTER® cage | Steel with an ECTFE coating | Hastelloy | Stainless Steel |
| Spider rings | Steel with an ECTFE coating | Hastelloy | Stainless Steel |
| FLAMEFILTER®* | PTFE* | PTFE* | PTFE* |
| Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® set. | PEEK / ETFE / FEP | PEEK / ETFE / FEP | PEEK / ETFE / FEP |
* electrically conductive
Special materials upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| > 0,90 mm | IIA | D |
Special approvals upon request
Selection of max. operating pressure
| NG | 150 / 6" | 150 / 6" | 200 / 8" | 300 / 12" |
| DN | 50 / 2" | 80 / 3" | 80 / 3" | 100 / 4" |
| Pmax | 2,4 / 34.8 | 1,1 / 15.9 | 1,2 / 17.4 | 1,2 / 17.4 |
Pmax = Maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request
Specification of max. operating temperature
| ≤ 60°C / 140°F | Tmaximum allowable operating temperature in °C |
| - | Designation |
higher operating temperatures upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other connections upon request
Design Types and Specifications
There are three different designs available:Additional special flame arresters upon request
*Resistance thermometer for
device
Device
A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow.
group II, category (1) 2 (GII cat. (1) 2)
Flow Capacity Chart

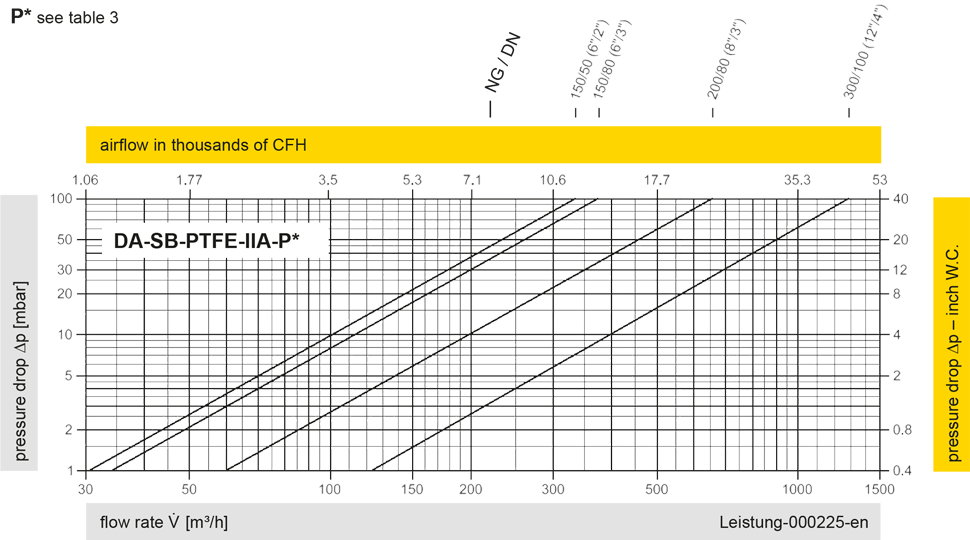

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
