Gauge Hatch with flange

Função e descrição

PROTEGO® gauge hatches types PF/K, PF/TK, and PS/KF are used as lockable gauge nozzles which are only opened for gauging or sampling. Otherwise, they are tightly closed.

The gauge hatches PROTEGO® PF/K, PF/TK, and PS/KF mainly consist of housing, cover, and bracket. The housing is equipped with stainless steel gauge marks as standard.

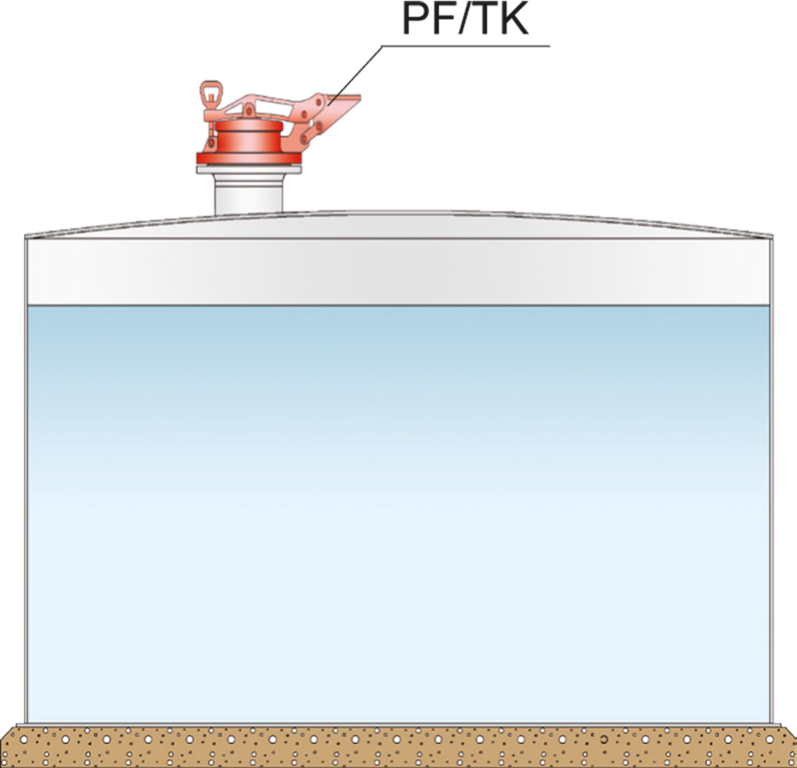

In the pedal-operated version PROTEGO® PF/TK, the gauging nozzle pedal is connected to both the housing and the bracket.

Tabela de dimensões

DN100 / 4'' 150 / 6'' 200 / 8''
a260 / 10.24305 / 12.01335 / 13.19
b150 / 5.91155 / 6.10175 / 6.89
c160 / 6.30205 / 8.07235 / 9.25
a1225 / 8.86265 / 10.43300 / 11.81
b1315 / 12.40360 / 14.17405 / 15.94
Dimensões em mm The nominal size depends on the dimensions of the gauging and sampling device

Seleção do material

DesignABCD
HousingDuctile Iron*Stainless SteelAluminiumSteel
CoverDuctile Iron*Stainless Steel**AluminiumSteel
The combination of steel and Aluminium in explosive enviroments is prohibited due to ignition danger.
* only for PF/K and PF/TK
** only for PF/TK-100

Dados necessários para a especificação

Stored product
Tank material
Tank nozzle DN (mm or inches)

Tipo de conexão flangeada

The flange Connection is to EN 10692-1, Form A. Optionally, the Connection flange can be made according to any international standard.

Versão e especificação

Depending on the intended use the following designs are available:

Gauge hatch with flange, design I and II

PF/K

remaining open

„I“

automatic cover closing

„II“

Gauge hatch with flange and pedal

PF/TK

Gauge hatch with flange nozzle, design I and II

PS/KF

remaining open

„I“

automatic cover closing

„II“

Gauge hatches for welding to the tank are available as types PROTEGO® PS/K and PS/TK. A separate data sheet is available.

Gauge Hatches can for instance be used in combination with the Manual gauge devices type PROTEGO® H/P or wih the gauging and sampling device PROTEGO® VP/HK.

Gauge Hatches can be applied on tanks with floating roof.
