BR/TS-80-IIB-P1,6
Detonation Flame Arrester for tank ships and containers
Caractéristiques
Fonction et description
Protection of Tanker Ships and Containers
The PROTEGO® BR/TS-80-IIB-P1.6 Detonation Detonation Explosion, die sich mit Überschallgeschwindigkeit fortpflanzt, gekennzeichnet durch eine Stoßwelle. Flame Arrester was developed for protecting tankships but can also be used for containers. These devices are especially used on tank ships operating on inland waterways or coastal shipping. The device is installed on the tank or a pipe section connected to the tank with a nominal size of 250 mm / 10" and connected to the vapour balancing line (DN 80 / 3"). The individual tanks connected via the vapour balancing line are technically decoupled by the detonation arresters and protected.
Main Component – PROTEGO® Flame Arrester Unit
The device protects against unidirectional detonation. In particular, the arrester consists of a shock absorber (1) and the PROTEGO® Flame Arrester Unit (2). The PROTEGO® Flame Arrester Unit consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® cage (4). It is moveable and can be folded to the side for maintenance. The primary goal of this design is to enable the tank to be vented or supplied with air in an emergency when ice or crystallizing products clog the FLAMEFILTER®.
For Explosion Groups IIA to IIB
The PROTEGO® BR/TS Flame Arrester is available for explosion groups IIA to IIB (NEC group D to B MESG ≥ 0.5 mm). The standard design is approved up to an operating temperature of +60°C / 140°F and an operating pressure up to 1.6 bar / 23.2 psi (absolute), and it meets all the conditions of the ADN* for hazardous goods transport on European Inland Waterways. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Material selection for housing
| Design | A | B | |
| Housing | Steel | Stainless Steel | |
| Cover | Steel | Stainless Steel | |
| Gasket | Tankatite | Tankatite | |
| Flame arrester unit | A | A |
Material selection for flame arrester unit
| Design | A |
| FLAMEFILTER® cage | Stainless Steel |
| FLAMEFILTER® | Stainless Steel |
| Spacer | Stainless Steel |
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |

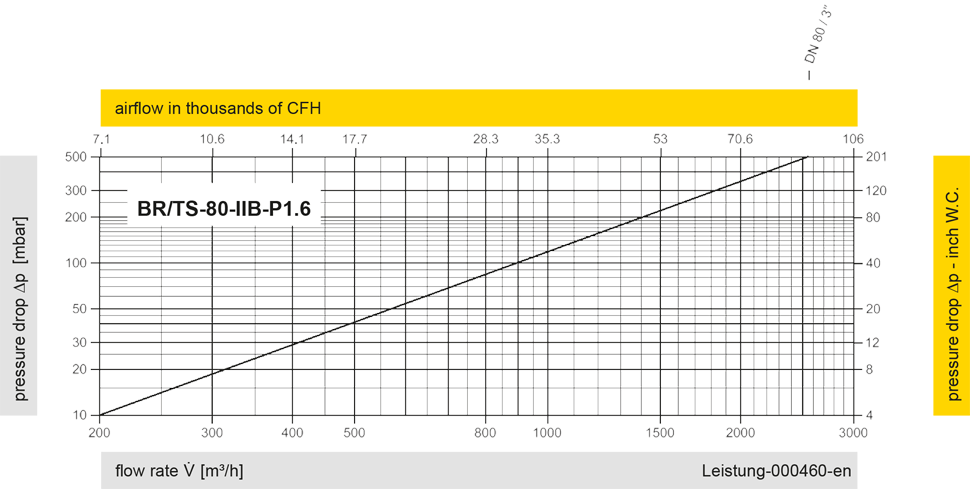

Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
