Pressure Relief Valve
- 10% technology for minimum pressure increase up to full lift
- extreme tightness, resulting in lowest possible product losses and reduced environmental pollution
- set pressure close to opening pressure for optimum pressure maintenance in the system
- high flow capacity
- valve pallet is guided inside the housing to protect against harsh weather conditions
- can be used in explosion hazardous areas
- automatic condensate drain
Función y Descripción
The P/ELR type PROTEGO® valve is a highly developed pressure relief valve with excellent flow performance. It is primarily used as a device for relieving pressure in tanks, containers, and process engineering equipment. The valve offers reliable protection against overpressure and prevents excessive loss of product vapors close to the set pressure.
The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve.
With this “full lift type” technology, valve can be set at just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.
Due to our highly developed manufacturing technology, the tank pressure is maintained up to set pressure with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1), or with an air cushion seal (2) in conjunction with high quality FEP diaphragm. The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used and to enable the use of corrosive substance. After the overpressure is released, the valve re-seats and provides a tight seal.
The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in a stable operation of the valve pallet, optimized performance, and reduced product losses.
To select the nominal size (DN), use the flow capacity chart on the following page
|DN||80 / 3"||80 / 3"||100 / 4"||100 / 4"|
|Set pressure||≤ +80 mbar||> +80 mbar||≤ +80 mbar||> +80 mbar|
|Set pressure||≤ +32.1 inch W.C.||> +32.1 inch W.C.||≤ +32.1 inch W.C.||> +32.1 inch W.C.|
|a||353 / 13.90||353 / 13.90||353 / 13.90||353 / 13.90|
|b||345 / 13.58||505 / 19.88||345 / 13.58||505 / 19.88|
Selección de materiales para la vivienda
|Heating jacket (P / ELR-H-...)||Steel||Stainless Steel|
|Valve seat||Stainless Steel||Stainless Steel|
|Weather hood||Steel||Stainless Steel|
|Protective mesh screen||Stainless Steel||Stainless Steel|
Selección de materiales para la válvula de presión
|Pressure range [mbar]|
|+3,5 up to +5,0|
+1.4 up to +2.0
|>+5,0 up to +14|
>+1.4 up to 5.6
|>+14 up to +210|
>+5.6 up to +84
|>+14 up to +210|
>+5.6 up to +84
|Valve pallet||Aluminium||Stainless Steel||Stainless Steel||Stainless Steel|
|Sealing||FEP||FEP||Metal to Metal||PTFE|
Tipo de bridas de conexión
|EN 1092-1; Form B1|
|ASME B16.5 CL 150 R.F.|
Modelo y especificación

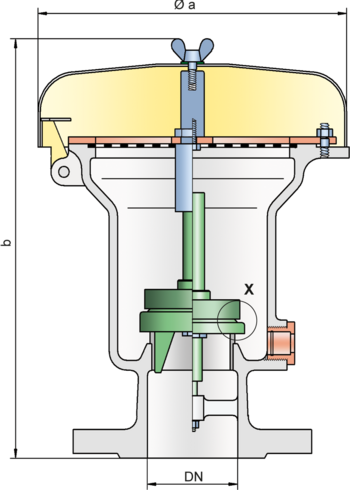

The valve pallet is weight-loaded. At set pressures greater than 80 mbar (32.1 inch W.C.), an elongated construction is used.
There are two different designs:
Pressure valve in basic design
P/ELR - –
Pressure valve with heating jacket
P/ELR - H
Additional special devices available upon request.
|Pressure:||+3.5 mbar||+210 mbar|
|+1.4 inch W.C.||+84 inch W.C.|
Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
