In-Line Detonation Flame Arrester for unstable and stable detonations and deflagrations in a straight through design with a shock tube, bidirectional

  • optimized performance due to the patented Shock Wave Guide Tube Effect (SWGTE)
  • low number of FLAMEFILTER® discs due to the patented shock tube (SWGTE)
  • modular design enables replacement of the individual FLAMEFILTER® discs
  • different designs allow scalable pressure loss over the area of the FLAMEFILTER®
  • maintenance-friendly design
  • advanced design for higher operating temperatures and pressures
  • bi-directional operation, as well as any flow direction and installation position
  • installation of temperature sensors possible
  • minimal pressure loss resulting in low operating and lifecycle costs
  • cost-effective spare parts

Función y Descripción

The type PROTEGO® DA-UB in-line detonation flame arresters are the newest generation of flame arresters. Based on fluid dynamic and explosion-dynamic calculations, as well as decades of field tests, a line was developed that offers minimum pressure loss and maximum safety. The device uses the Shock Wave Guide Tube Effect (SWGTE) to separate the flame front and shock wave. The result is an in-line detonation flame arrester without a classic shock absorber, and the use of flame-extinguishing elements is minimized.

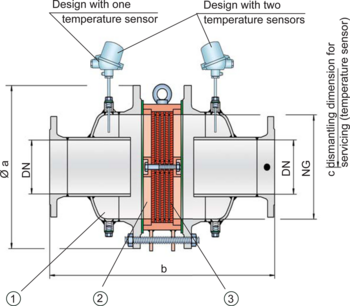

The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable and unstable detonations. The arrester essentially consists of two housing parts with an integrated shock tube (1) and the PROTEGO® flame arrester unit (2) in the center. The PROTEGO® flame arrester unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing. The number of FLAMEFILTER® discs and their gap size depends on the arrester’s intended use.

By specifying the operating conditions, such as the temperature, pressure, explosion group, and the composition of the fluid, the optimum detonation arrester can be selected from a series of approved devices. PROTEGO® DA-UB flame arresters are available for explosion groups IIA to IIB3 (NEC group D to C MESG ≥ 0.65 mm).

The standard design can be used at an operating temperature of up to +60°C / 140°F and an absolute operating pressure up to 1.1 bar / 15.9 psi. Devices with special approval for higher temperatures and pressures (see table 3) are available upon request.

Type-approved in accordance with the current ATEX Directive and EN ISO 16852, as well as other international standards.

Dimensiones

To select nominal width/nominal size (NG/DN) - combination, please use the flow capacity charts on the following pages
Additional nominal width/nominal size (NG/DN) - combinations for improved flow capacity upon request

NG150 / 6"150 / 6"200 / 8"300 / 12"400 / 16"500 / 20"600 / 24"700 / 28"800 / 32"1400 / 56"
DN≤ 50 / 2"65, 80 / 2 ½“, 3≤100 / 4"≤150 / 6"≤ 200 / 8"≤ 250 / 10"≤ 300 / 12"≤ 350 / 14"≤ 400 / 16"≤ 600 / 24"
a285 / 11.22285 / 11.22340 / 13.39445 / 17.52565 / 22.24670 / 26.38780 / 30.71895 / 35.241015 / 39.961675 / 65.94
bIIA -P1,1700 / 27.56800 / 31.501000 / 39.371200 / 47.241400 / 55.122200 / 86.61
IIA -P1,2388 / 15.28388 / 15.28488 / 19.21626 / 24.65
IIB3-P1,1500 / 19.69638 / 25.12724 / 28.50824 / 32.441000 / 39.371200 / 47.241400 / 55.12
IIB3-P1,2388 / 15.28388 / 15.28
c500 / 19.69500 / 19.69520 / 20.47570 / 22.44620 / 24.41670 / 26.38720 / 28.35770 / 30.31820 / 32.281060 / 41.73
Dimensiones en mm / pulgadas

Selección de materiales para la vivienda

DesignABC
HousingSteelStainless SteelHastelloy
Heating jacket (DA-UB-(T)-H-...)SteelStainless SteelStainless Steel
GasketPTFEPTFEPTFE
Flame arrester unitAB, CD
The housing is also available in Steel with an ECTFE coating. Special materials upon request

Combinación de materiales para la unidad apagallamas

Design ABCD
FLAMEFILTER® cageSteelStainless SteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloyHastelloy
SpacerStainless SteelStainless SteelHastelloyHastelloy
*the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used. Special materials upon request

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,65 mmIIB3C
Special approvals upon request

Selección de la máxima presión de operación

Expl. Gr.DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"600 / 24"
NG150 / 6''150 / 6''200 / 8''300 / 12''400 / 16''500 / 20''600 / 24''700 / 28''800 / 32''1400 / 56''
IIAPmax1,8 / 26.11,8 / 26.11,6 / 23.21,6 / 23.21,1 / 15.91,1 / 15.91,1b / 15.91,1 / 15.91,1 / 15.91,6 / 23.2
IIB3Pmax1,5 / 21.71,5 / 21.71,5 / 21.71,5 / 21.71,1 / 15.91,1 / 15.91,1 / 15.91,1 / 15.91,1 / 15.9
Pmax = maximum allowable operating pressure in bar / psi absolute, higher operating pressure upon request in-between size up to Pmax upon request

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation
higher operating temperatures upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.
other connections upon request

Modelo y especificación

There are four different designs available:

Basic design of the detonation arrester

DA-UB- – - –

In-line detonation flame arrester with integrated temperature sensor* as additional protection against short time burning

DA-UB- T - –

Detonation arrester with two integrated temperature sensors* as additional protection against short time burning from both sides

DA-UB- TB - –

In-line detonation flame arrester with heating jacket

DA-UB- H -

Additional special arresters upon request
*Resistance thermometer for device group II, category (1) 2 (GII cat. (1) 2)

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
