Características
Función y descripción
Combined Pressure and Vacuum Relief Valve
The PV/EL Type PROTEGO® valve is a highly developed combined pressure and vacuum relief valve. It is primarily used as a device for relieving pressure and vacuum in tanks, containers, and process engineering equipment. The valve offers reliable protection against unallowable overpressure and underpressure. Product loss close to the set pressure is avoided and unallowable product entry is prevented.
Full Lift Technology
The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum ( MAWP Maximal erlaubter Betriebsdruck (MAWP) Maximaler zulässiger Überdruck im oberen Bereich eines kompletten Behälters in normaler Betriebsstellung bei der genannten übereinstimmenden Temperatur, die für diesen Druck spezifiziert ist. or MAWV) of the tank and still safely vent the required mass flow. The opening characteristic is the same for pressure and vacuum relief.
Advanced Manufacturing Technology
Due to the highly developed manufacturing technology, the tank pressure is maintained up to the set pressure with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1) or with an air cushion seal (2) in conjunction with high quality FEP diaphragm. The valve pallets are also available with a PTFE seal to prevent the valve pallet from sticking when sticky products are used, and they enable the use of corrosive substances. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensiones
To select the nominal size (DN), use the flow capacity chart on the following page
| DN | 50 / 2" | 50 / 2" | 80 / 3" | 80 / 3" |
| Set pressure | ≤ +60 mbar | > +60 mbar | ≤ +60 mbar | > +60 mbar |
| Set pressure | ≤ +24.1 inch W.C. | > +24.1 inch W.C. | ≤ +24.1 inch W.C. | > +24.1 inch W.C. |
| a | 308 / 12.13 | 443 / 17.44 | 308 / 12.13 | 443 / 17.44 |
| b | 108 / 4.25 | 108 / 4.25 | 108 / 4.25 | 108 / 4.25 |
| c | 165 / 6.50 | 165 / 6.50 | 167 / 6.57 | 167 / 6.57 |
| d | 218 / 8.58 | 218 / 8.58 | 218 / 8.58 | 218 / 8.58 |
Dimensiones en mm / pulgadas
Dimensions for pressure/ vacuum relief valve with heating jacket upon request
Selección de materiales para la vivienda
| Design | B | C |
| Housing | Steel | Stainless Steel |
| Heating jacket (PV / EL-H-...) | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel |
| Weather hood | Steel | Stainless Steel |
| Protective mesh screen | Stainless Steel | Stainless Steel |
Special materials upon request
Selección de materiales para la válvula de presión
| Design | A | B | C | D |
| Pressure range [mbar] [inch W.C.] | +2.0 up to +3.5 +0.8 up to +1.4 | >+3.5 up to +14 >+1.4 up to +5.6 | >+14 up to +210 >+5.6 up to +84 | >+14 up to +210 >+5.6 up to +84 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal | PTFE |
Special material as well as higher set pressure upon request
Selección de materiales para la válvula de vacío
| Design | A | B | C | D |
| Pressure range [mbar] [inch W.C.] | -3.5 up to -5.0 -1.4 up to -2.0 | <5.0 up to -14 <-2.0 up to -5.6 | <-14 up to -35 <-5.6 up to -14 | <-14 up to -35 <-5.6 up to -14 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal | PTFE |
Special material as well as higher set vacuum upon request
Tipo de bridas de conexión
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Modelo y especificación
The valve pallets are weight-loaded. At set pressures greate than 60 mbar (24.1 inch W.C.), an elongated construction is used.There are two different designs:
Additional special devices available upon request.
Any combination of vacuum and pressure levels can be set for the valve. When the difference between the pressure and vacuum exceeds 150 mbar / 60.2 inch W.C., special valve pallets are used.
Settings
| Pressure: | +2.0 mbar | +210 mbar |
| +0.8 inch W.C. | +84 inch W.C. | |
| Vacuum: | -14 mbar | -35 mbar |
| -5.6 inch W.C. | -14 inch W.C. | |
| Vacuum: | -3.5 mbar | -14 mbar |
| -1.4 inch W.C. | -5.6 inch W.C. |
for presssure up to max. + 150 mbar / 60.2 inch W.C.
Higher and lower settings upon request.

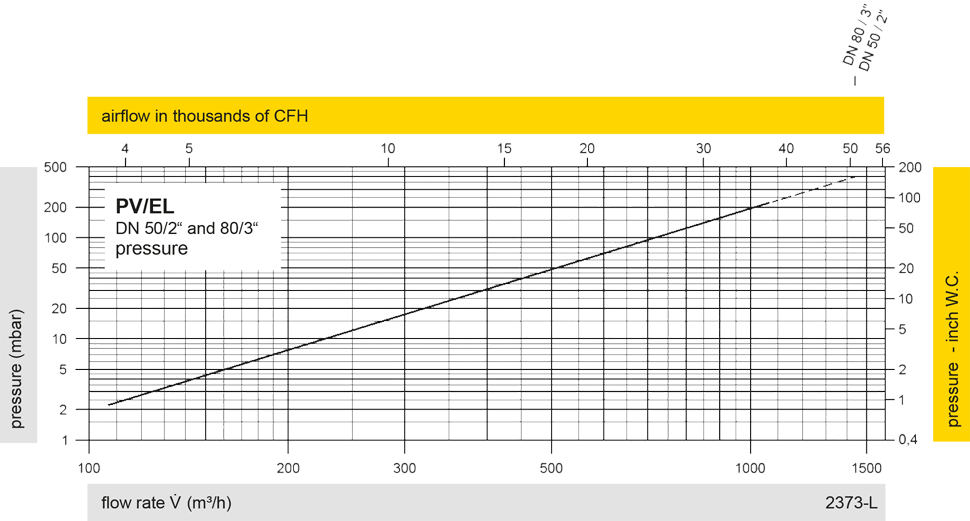

Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
