P/EBR-E-IIB1

Pressure Relief Valve deflagration- and endurance burning-proof

  • extreme tightness, resulting in lowest possible product losses and reduced environmental pollution
  • set pressure close to opening pressure for optimum pressure maintenance in the system
  • valve opens later and closes earlier than conventional valves
  • valve pallet is guided inside the housing to protect against harsh weather conditions
  • can be used as a protective system in areas with potentially explosive atmospheres in accordance with ATEX
  • protected against deflagration and endurance burning of alcohol/air mixtures from explosion group IIB1
  • high flow capacity due to larger FLAMEFILTER® cross section
  • PROTEGO® flame arrester unit provides protection against atmospheric deflagration and endurance burning
  • integrated PROTEGO® flame arrester unit saves space and weight and reduces costs
  • PROTEGO® flame arrester unit is protected from clogging and sticky substances caused by product vapors
  • minimum pressure loss of the PROTEGO® flame arrester unit
  • flameproof condensate drain
  • maintenance-friendly design
  • modular design enables replacement of individual FLAMEFILTER® discs and valve pallet

Función y Descripción

The deflagration-proof and endurance burning-proof P/EBR-E type PROTEGO® valve is a highly developed pressure relief valve for large flows with an integrated flame arrester unit that is specifically designed for use in ethanol production, processing, and storage. It is primarily used as a device for flame transmission-proof out-breathing on tanks, containers, and process equipment. The valve offers reliable protection against overpressure and prevents product losses almost up to the set pressure, while at the same time protecting against atmospheric deflagration and endurance burning if stabilized burning occurs. The PROTEGO® flame arrester unit is designed to achieve minimum pressure drop with maximum safety. The P/EBR-E valve is available for substances of explosion group IIB1 (MESG ≥ 0.85 mm) and provides specific protection against deflagration and endurance burning of alcohol/air mixtures (such as ethanol/air).

The valve functions proportional, so the set pressures should be selected in relation to the proportional behavior (such as a 10%, 40%, or 100% overpressure from the set pressure to the relieving pressure at which the required flow performance is reached).

The tank pressure is maintained up to the set pressure with a tightness that is above the normal standards due to our stateof- the-art manufacturing technology. This feature is ensured by the valve seats made of high quality stainless steel and with individually lapped valve pallets (1), or with an air cushion seal (2), in conjunction with high quality FEP diaphragm. The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky substances are used and to enable the use corrosive fluids. After the over pressure is released, the valve re-seats and provides a tight seal.

If the set pressure is exceeded, explosive gas/product vapor/air mixtures are released into the atmosphere. If this mixture ignites, the integrated PROTEGO® flame arrester unit (3) prevents flame transmission into the tank. If additional mixture continues to flow and stabilized burning occurs, the integrated flame arrester unit prevents flashback as a result of endurance burning. The valve is protected and also fulfils its function under these severe conditions. The spring-loaded weather hood opens as soon as the melting element (4) melts.

The valve can be used at an operating temperature of up to +60°C / 140°F and meets the requirements of European tank design standard EN 14015 (Appendix L) and ISO 28300 (API 2000).

EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

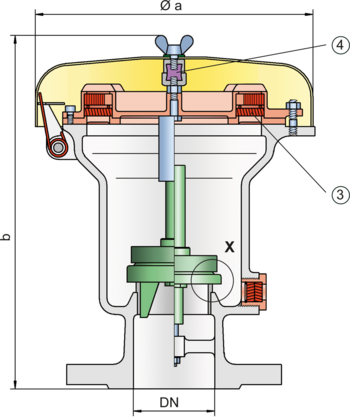

Dimensiones

To select the nominal size (DN), please use the flow capacity chart on the following page

DN 80 / 3" 80 / 3" 100 / 4" 100 / 4"
Set pressure≤ +80 mbar> +80 mbar≤ +80 mbar> +80 mbar
Set pressure≤ +32.1 inch W.C.> +32.1 inch W.C.≤ +32.1 inch W.C.> +32.1 inch W.C.
a353353353353
b345505345505
Dimensiones en mm / pulgadas Dimensions for pressure relief valve with heating jacket upon request

Selección de materiales para la vivienda

Design BC
HousingSteelStainless Steel
Heating jacket (P / EBR-E-H-...)SteelStainless Steel
Valve seatStainless SteelStainless Steel
Weather hoodSteelStainless Steel
Special materials upon request

Combinación de materiales para la unidad apagallamas

Design  A
FLAMEFILTER® cageStainless Steel
FLAMEFILTER®Stainless Steel
SpacerStainless Steel
Special materials upon request

Material selection for valve pallet

Design ABCD
Pressure range [mbar]
 [inch W.C.]
+3.5 up to +5.0
 +1.4 up to +2.0
>+5.0 up to +14
>+2.0 up to +5.6
>+14 up to +210
>+5.6 up to +84
>+14 up to +210
 >+5.6 up to +84
Valve palletAluminiumStainless SteelStainless SteelStainless Steel
SealingFEPFEPMetal to MetalPTFE
Special materials and higher pressure settings upon request

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,85 mmIIB1
Special approvals upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.
other types upon request

Modelo y especificación

The valve disc is weight-loaded. At set pressure >80 mbar (32.1 inch W.C.), an elongated design is used
There are two different designs:

Pressure relief valve, basic design

P/EBR - E - –

Pressure relief valve with heating jacket (max. heating fluid temperature +85°C / 185°F)

P/EBR - E - H

Additional special devices available upon request

Settings

Pressure: +3.5 mbar +210 mbar
+1.4 inch W.C. +84 inch W.C.
Higher pressure settings upon request.

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
