D/PA(L)
Pressure or Vacuum Relief Valve with pipe-away connection
- 10% technology for minimum pressure increase up to full lift
- extreme tightness, resulting in lowest possible product losses and reduced environmental pollution
- set pressure close to opening pressure for optimum pressure maintenance in the system
- very high flow capacity
- can be used in explosion hazardous areas
- automatic condensate drain
- maintenance-friendly design
- best technology for API tanks
Función y Descripción
The VD/SV-PA(L) type PROTEGO® valve is a highly developed pressure and vacuum relief valve with excellent flow performance. Typically, the valve is installed in the in-breathing and out-breathing lines of tanks, vessels, and process equipment to protect against unallowable overpressure and underpressure. The valve prevents emission losses almost up to the set pressure and prevents air intake almost up to the set vacuum. The product vapors can be released through a collective line connected to the line flange on the pressure side. Backflow is not possible, i.e. the valve can be used as an overflow valve or backflow protection.
The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “full lift type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum (MAWP or MAWV) of the tank and still safely vent the required mass flow. The opening characteristic is the same for pressure and vacuum relief.
Due to our highly developed manufacturing technology, the tank pressure is maintained up to set pressure with a tightness that is far superior to the conventional standard. This feature is valve seats made of high quality stainless steel and achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1) or with an air cushion seal (2) in conjunction with high quality FEP diaphragm. The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used and to enable the use of corrosive substances. After the excess pressure is released or the vacuum is balanced, the valve reseats and provides a tight seal.
The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in a stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensiones
To select the nominal size (DN), use the flow capacity charts on the following pages
D/PA | |||||||
DN 1 | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" |
DN 2 | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" |
a | 165 / 6.50 | 192 / 7.56 | 240 / 9.45 | 350 / 13.78 | 390 / 15.35 | 460 / 18.11 | 460 / 18.11 |
b | 331 / 13.03 | 402 / 15.83 | 472 / 18.58 | 565 / 22.24 | 682 / 26.85 | 760 / 29.92 | 760 / 29.92 |
c | 150 / 5.91 | 180 / 7.09 | 200 / 7.87 | 250 / 9.84 | 300 / 11.81 | 305 / 12.01 | 305 / 12.01 |
d | 180 / 7.09 | 215 / 8.46 | 255 / 10.04 | 300 / 11.81 | 387 / 15.24 | 440 / 17.32 | 467 / 18.39 |
D/PAL | |||||||
DN 1 | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" |
DN 2 | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 350 / 14" |
a | 165 / 6.50 | 192 / 7.56 | 240 / 9.45 | 350 / 13.78 | 390 / 15.35 | 460 / 18.11 | 460 / 18.11 |
b | 342 / 13.46 | 402 / 15.83 | 472 / 18.58 | 565 / 22.24 | 682 / 26.85 | 760 / 29.92 | 770 / 30.31 |
c | 140 / 5.51 | 143 / 5.63 | 165 / 6.50 | 216 / 8.50 | 267 / 10.51 | 305 / 12.01 | 305 / 12.01 |
d | 195 / 7.68 | 223 / 8.78 | 280 / 11.02 | 327 / 12.87 | 412 / 16.22 | 467 / 18.39 | 488 / 19.21 |
Selección de materiales para la vivienda
Design | A DN50/2”-80/3” | B DN100/4”-300/12” | C DN50/2”-300/12” |
Housing | Stainless Steel | Steel | Stainless Steel |
Housing attachment | Steel | Steel | Stainless Steel |
Heating jacket(D/PA(L)-H-...) | Stainless Steel/Steel | Stahl | Stainless Steel |
Valve seat | Stainless Steel | Stainless Steel | Stainless Steel |
Gasket | PTFE | PTFE | PTFE |
Material selection for valve pallet
Design | A | B | C | D | E | F |
Pressure range [mbar] [inch W.C.] | ±2,0 up to ±3,5 ±0.8 up to ±1.4 | ±3,5 up to ±14 ±1.4 up to ±5.6 | ±14 up to ±35 ±5.6 up to ±14 | ±35 up to± 60 ±14 up to ±24 | ±14 up to ±35 ±5.6 up to ±14 | ±35 up to ±60 ±14 up to ±24 |
Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
Sealing | FEP | FEP | Metal to Metal | Metal to Metal | PTFE | PTFE |
Tipo de bridas de conexión
EN 1092-1; Form B1 |
ASME B16.5 CL 150 R.F. |
Modelo y especificación
The valve pallets are weight-loaded. Higher pressures can be achieved upon request with a special spring-loaded design. Choose the model (L) if the discharge nozzle has a nominal diameter that is greater than the nominal diameter of the tank filler neck.
There are four different designs:
Pressure or vacuum valve in basic design | D/PA |
Pressure or vacuum valve with heating jacket | D/PA - H |
Pressure or vacuum relief valve with DN2 > DN1 | D/PAL |
Pressure or vacuum relief valve with DN2 > DN1 with heating jacket | D/PAL - H |
Additional special devices available upon request
Settings
Pressure or vacuum: | ±2.0 mbar | ±60 mbar | |
±0.8 inch W.C. | ±24 inch W.C. |

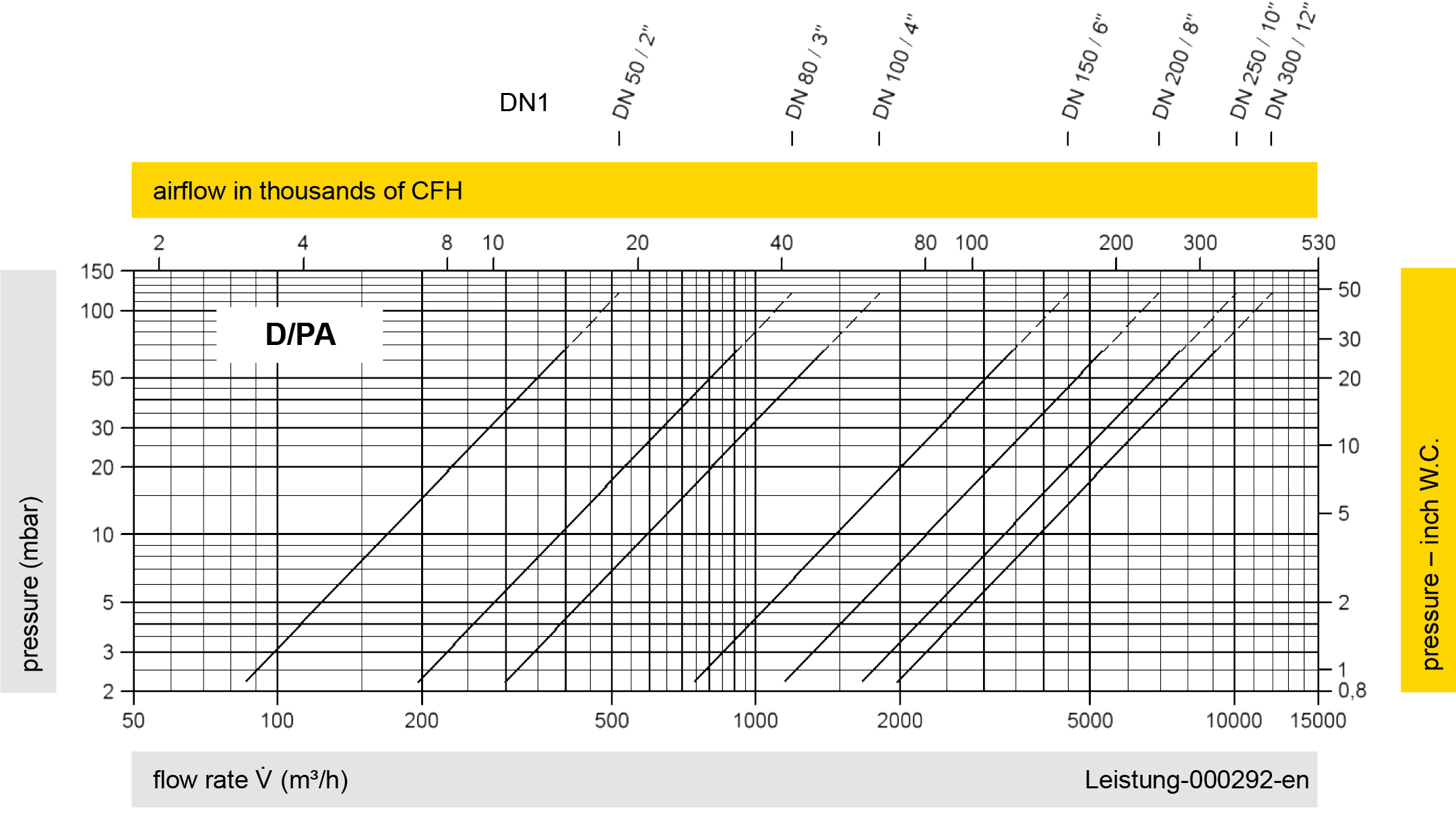

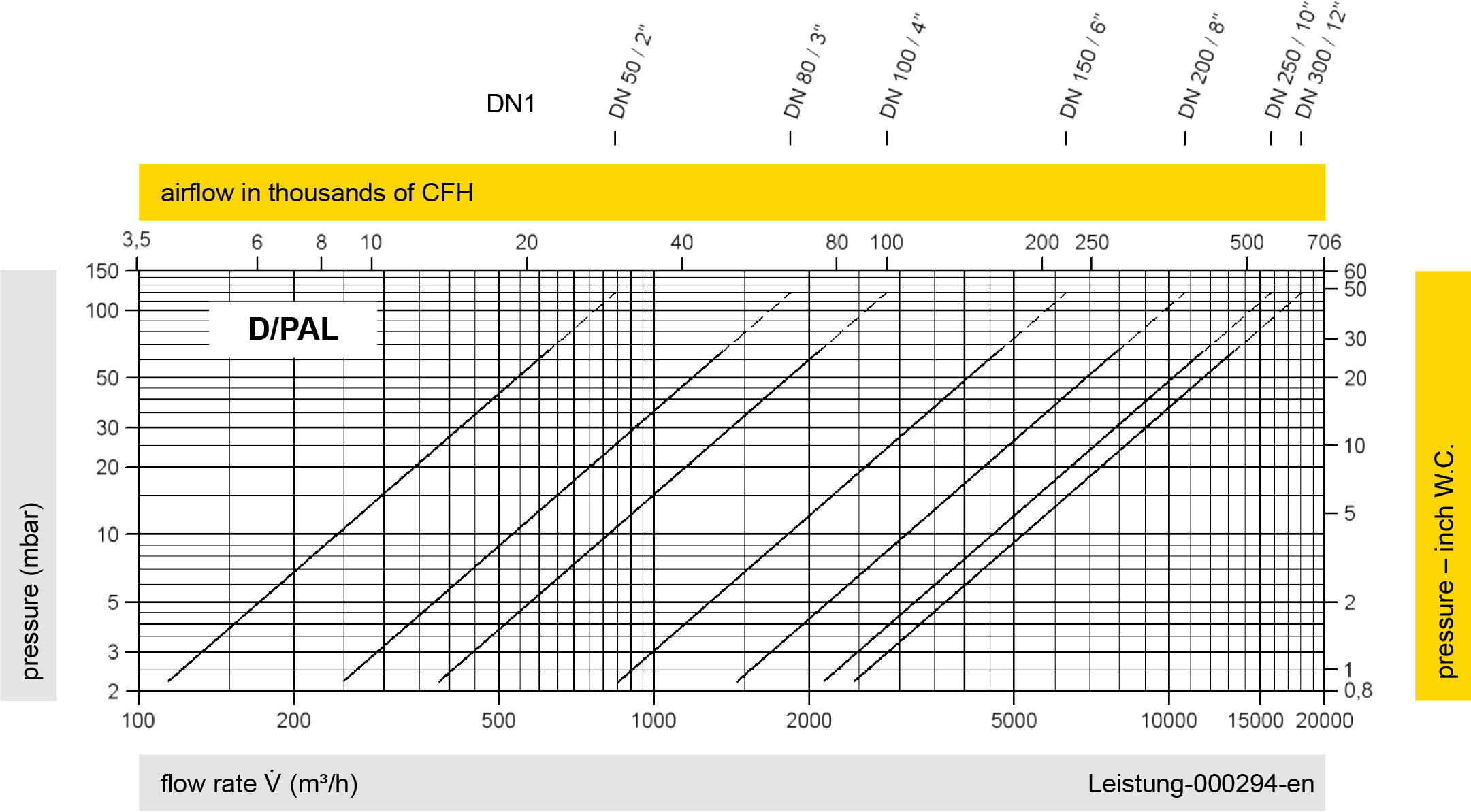

Diagrama de flujo volumétrico


Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
