BE/HR

Deflagration Flame Arrester, endurance burning proof, End-of-Line

  • protection against atmospheric deflagration and endurance burning
  • endurance burning protection for IIB3 and IIA vapour (NEC groups C and D)
  • weather hood protects against environmental impact (i.e. weather, bird nests, etc.)
  • weather hood opens and signals the impact of a flame
  • fusible link is resistant against chemicals
  • modular design allows replacement of single FLAMEFILTER®
  • modular design results in low spare part cost

Función y Descripción

For many years the PROTEGO® BE/HR end-of-line deflagration flame arrester has been successfully used to protect vessels and process engineering apparatus which are not pressurized. The device provides protection against flame transmission through atmospheric deflagration and stabilized flames which can burn for very long time on the flame arrester element surface, so called endurance burning. Main application area is on in- and out-breathing and vent lines, with the goal to prevent flame transmission caused by endurance burning or atmospheric deflagration from propagating into the vessel or plant.

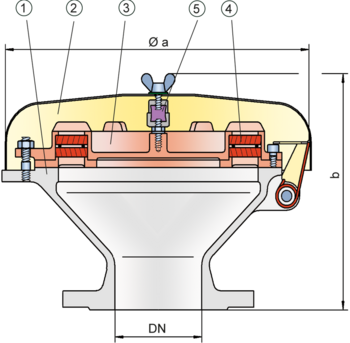

The PROTEGO® BE/HR consists of a housing (1), a weather hood (2) and the PROTEGO® flame arrester unit (3). During normal operation the metal weather hood is in a closed position. If a flame burns on the flame arrester element surface, the fusible link (5), located in a center position, will melt and let the spring loaded weather hood move into the open position. The PROTEGO® flame arrester unit consists of two FLAMEFILTER® discs (4), which are installed in a FLAMEFILTER® casing. The FLAMEFILTER® gap size will depend on the devices intended use. Detailing the operating conditions such as the temperature, explosion group and the composition of the fluid, enables PROTEGO® to select the best end-of-line deflagration flame arrester for your application. The PROTEGO® BE/HR series end-of-line deflagration flame arrester is available for substances from explosion groups IIA to IIB3 (NEC groups D to C MESG ≥ 0.65 mm). In a modified design, this device is also available for Ethanol applications.

The standard design can be used with operating temperature of up to +60°C / 140°F.

Type-approved according to ATEX Directive as well as other international standards.

Dimensiones

To select the nominal size (DN), please use the flow capacity charts on the following pages

DN80 / 3"100 / 4"
a353 / 13.90353 / 13.90
b250 / 9.84250 / 9.84
Dimensiones en mm / pulgadas Dimensions for deflagration flame arrester with heating jacket upon request

Selección de materiales para la vivienda

Design BC
HousingSteelStainless Steel
Weather hoodSteelStainless Steel
Flame arrester unitAA, C
Special materials upon request

Combinación de materiales para la unidad apagallamas

Design AC
FLAMEFILTER® cageStainless SteelStainless Steel
FLAMEFILTER®Stainless SteelHastelloy
SpacerStainless SteelHastelloy
Special materials upon request

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C
Special approvals upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.
other connections upon request

Modelo y especificación

There are two different designs:

End-of-line deflagration flame arrester, basic design

BE/HR - –

End-of-line deflagration flame arrester with heating coil

BE/HR - R

Special designs available on request

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
